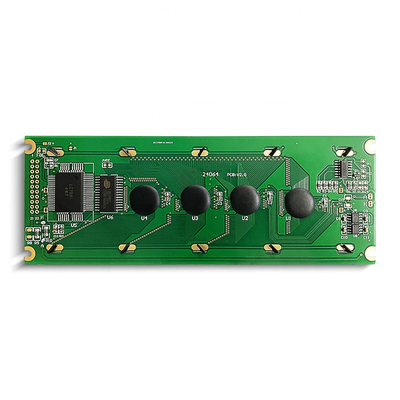

Monochrome Graphic Stn LCD Display Module 5.2 Inch 240X64 VLCD 17.5V

large.img.alt
small.img.alt small.img.alt

Large Image :  Monochrome Graphic Stn LCD Display Module 5.2 Inch 240X64 VLCD 17.5V

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS
Model Number: RYP24064B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 19.5~19.9 USD
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20K/Month
Detailed Product Description
Product Name: 5.2'' Graphic LCD 240x64 Monochrome LCM Display Module With Backlight Display Type: STN Blue, Transmissive, Negative
Resolution: 240x64 Type: Graphic COB
Viewing Direction: 6 O'clck IC: LC7981
Backlight: LED White Operating Temp.: -20℃~+70℃
Stroage Temp.: -30℃~+80℃ Number Of Pins: 22pin
High Light:

Graphic Stn LCD Display Module

,

240X64 Monochrome LCD Display Module

,

VLCD 17.5V Monochrome LCD Module

5.2 Inch 240X64 Blue Monochrome Graphic Stn LCD Display Module



PRODUCT DESCRIPTION

Specification
1) Driving: Duty: 1/ 128, Bias:1/16, VLCD:17.5V, VDD:5.0V
2) Viewing angle: 6 0' clock
3) Display mode: STN/Negative/ Transmissive/ Blue
4) Operating temp:- 20ºC~+70ºC
Storage temp.: - 30°C~+80ºC
5) Control IC: T6963C (or compatible)
6) Backlight: Edge White

Item Description
Product Name 240x128 LCD Module
Model No. RYP240128A
Dot Format 240x128
Outline (mm) 144.0*104.0*14.3(MAX)mm
Active Area(mm) 107.98×57.58mm
Display Mode STN Blue
Duty 1/128, 1/16 bias
Driver IC T6963C
Viewing Direction 6:00
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC

Monochrome Graphic Stn LCD Display Module 5.2 Inch 240X64 VLCD 17.5V 0


Monochrome Graphic Stn LCD Display Module 5.2 Inch 240X64 VLCD 17.5V 1

PACKAGE
Monochrome Graphic Stn LCD Display Module 5.2 Inch 240X64 VLCD 17.5V 2

Choose the right package according to the size of the product and carry out multiple protections to ensure that the product avoids damage during transportation.
