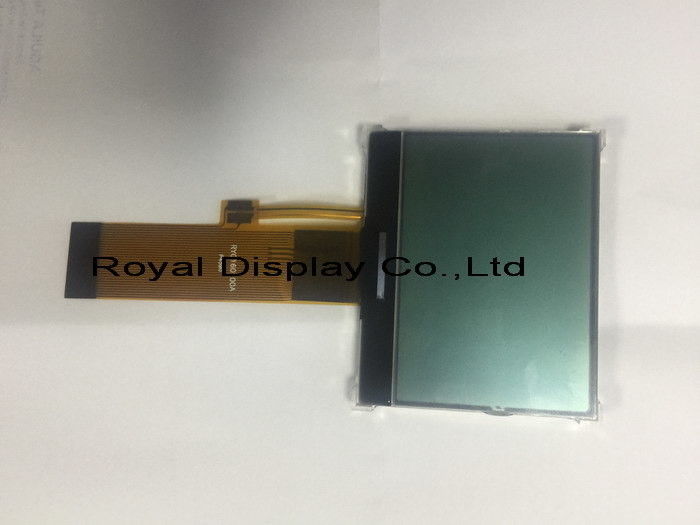

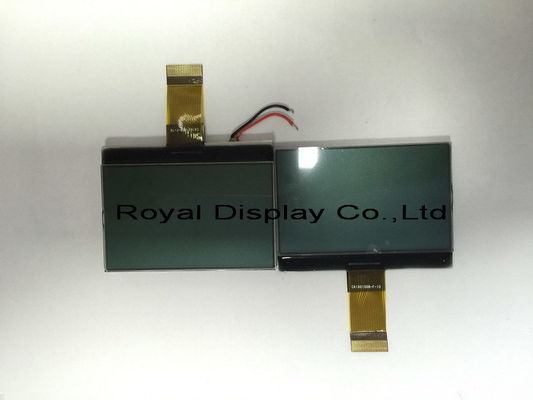

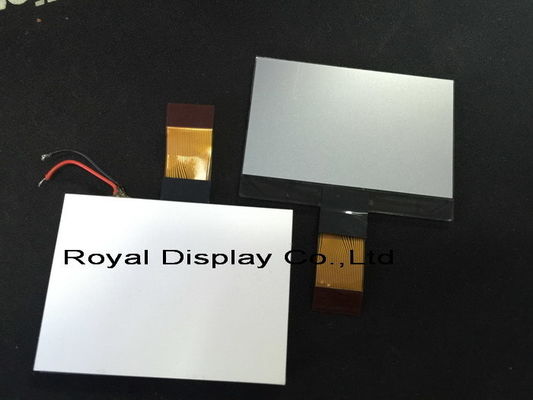

FSTN STN Cog Factory 160x100 DOT Matrix LCD Display Mono Graphic LCD Controller

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  FSTN STN Cog Factory 160x100 DOT Matrix LCD Display Mono Graphic LCD Controller

Product Details:
Place of Origin: China
Certification: ROHS, ISO
Model Number: RYG12864M
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 9.9-12.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 160X100 Outline (mm): 55*45
Controller: ST7528 Backlight Color: White Or Amber LED Backlight
IC Package: Cog Connection: FPC-Soldering
Display Type: FSTN Power Supply: 3.3V
Interface: Parallel Sunlight Readable: Yes
View Angle Range: 6 O' Clock Connector: FFC-Connector
High Light:

Cog DOT Matrix LCD Display


FSTN DOT Matrix LCD Display


160x100 Dots Graphic LCD Controller

Custom COG dot matrix LCD Module 160*100 Dots LCD Display



1. 160x100dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option


Item Description
Product Name 160x100 dots Graphic LCD Module

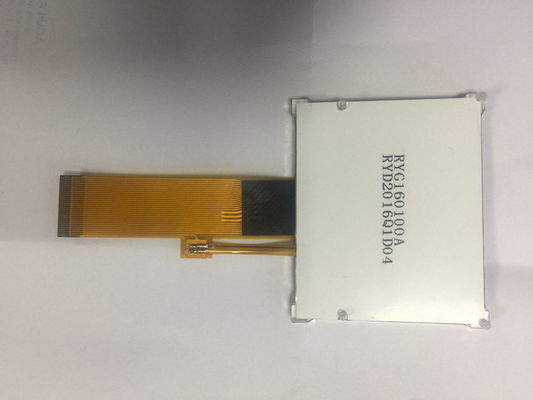

Model No. RYG160100A
Dot Format 160X100
Outline (mm) 55*45
Viewing Area(mm) 47.1*31
Pixel Size( mm) 0.25 x 0.2
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray

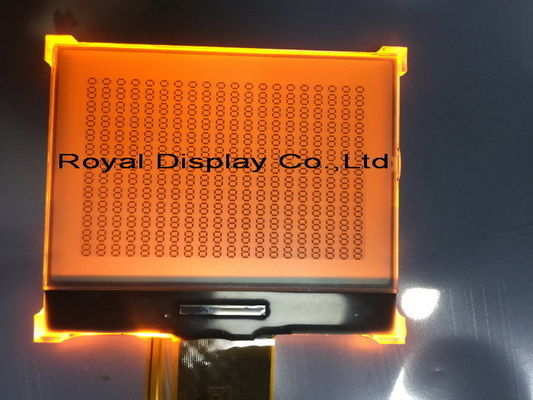

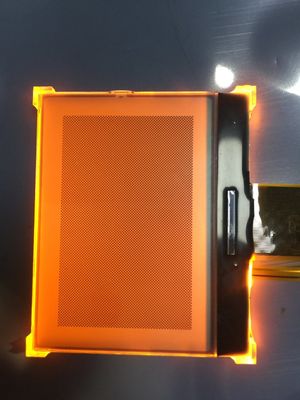

Backlight White or Amber LED backlight
Driver IC ST7528
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC





1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.






FSTN STN Cog Factory 160x100 DOT Matrix LCD Display Mono Graphic LCD Controller 0



FSTN STN Cog Factory 160x100 DOT Matrix LCD Display Mono Graphic LCD Controller 1





Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.


Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.


Q: Can we visit your factory?
A: You are welcome to visit us.


Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.


Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.


Q: How much the transportation freight of the sample?
A: The freight depends on total weight and your address.


Q:What's the delivery time?
A: > For samples order, 2-3weeks;
> For mass orders,4-6weeks.


Q.Do you provide free samples?
A:For first time cooperation, samples will be charged, the amount will be returned at the mass order stage. In regular cooperation, samples are free.Sellers keep the right for any change.
