FSTN Postive STN Bule Graphic Lcd Display Module 240*128 Dots With T6963C
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYB240128B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | RYB240128A Graphic LCD Module FSTN Positive Black On White Or STN Blue White 240*128 Dots With T6963C | Model No.: | RYB240128B |
|---|---|---|---|
| Dot Format: | 240X128 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White | Controller: | T6963C |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN Postive STN Bule |
| Highlight: | Transflective Lcd Display,Monochrome Graphic Display |
||
Product Description
RYB240128B Graphic LCD Module FSTN Positive Black On White or STN Blue White 240*128 Dots With T6963C
1.240x128 dots,
2.Parallel interface

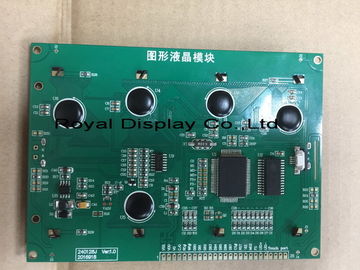

3.DC/DC on board, 5v power supply
4.STN-blue, FSTN-positive with white LED backlight
5.Mechanical size compatible with Optrex DMF50840 / DMF50714
6.Compact structure, high reliable, pure new design
2.Parallel interface
3.DC/DC on board, 5v power supply
4.STN-blue, FSTN-positive with white LED backlight
5.Mechanical size compatible with Optrex DMF50840 / DMF50714
6.Compact structure, high reliable, pure new design

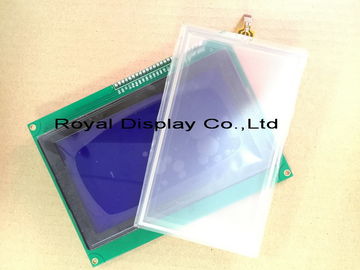

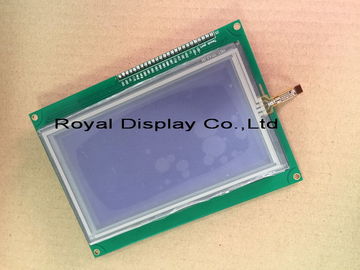

7.Touch panel optional
| Item | Description |
| Product Name | 240x128 dots Graphic LCD Module |
| Model No. | RYB240128A |
| Dot Format | 240 x 128 |
| Outline Dimension(mm) | 144.0 x 104.0 |
| Assem. Size(mm) | 138.0 x 97.0 |
| Viewing Area(mm) | 114.0 x 64.0 |
| Pixel Size( mm) | 0.42 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | T6963C |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
