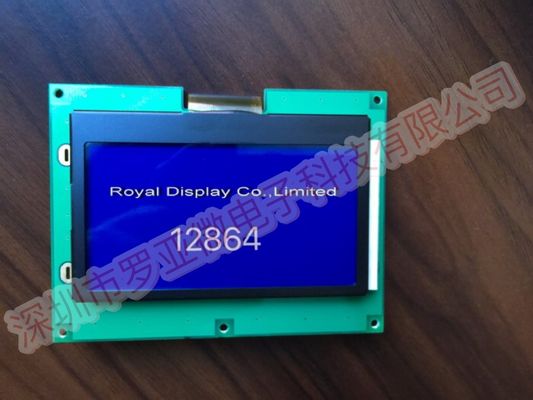

Character Dfstn Blue COG/COB Backlight 12864 LCD Display Module 5V

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Character Dfstn Blue COG/COB Backlight 12864 LCD Display Module 5V

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYP12864A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128x64 Outline (mm): 93*70
IC Package: Cog Backlight Color: Blue
Display Type: FSTN Power Supply: 5V
Interface: Parallel View Angle Range: No
Connector: FFC-Connector Viewing Direction: 6:00
High Light:

Stn Graphic LCD Graphic Module

,

ROHS FSTN Graphic LCD Module

,

FPC FSTN Lcd Display Module

Character DFSTN Blue 12864 LCD Display Module with white Backlight

PRODUCT DESCRIPTION



Item Description

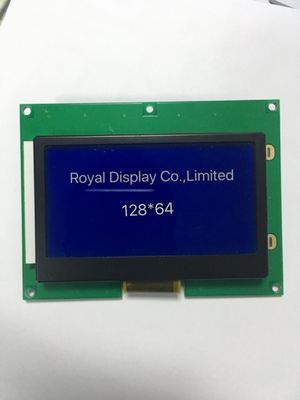

Product Name 128x64dots Graphic LCD Module
Model No. RYP12864A
Dot Format 128*64
Outline (mm) 93*70*18.7
LCD Type DFSTN-Blue, Transmissive, Negative
Viewing Angle 6 O' clock
Backlight Blue
Driver IC ST7567
Power supply 5V
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC

MONO LCD Display
Character Dfstn Blue COG/COB Backlight 12864 LCD Display Module 5V 0


Custom Made Project Order Flow

1. Enquiry


Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).



2. Counter drawing


We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.



3. Tooling samples


After drawing approval, tooling samples will be finished around 30 days



4. Mass production


After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply siutuation.





FEATURES
Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range





APPLICATION

Character Dfstn Blue COG/COB Backlight 12864 LCD Display Module 5V 1
