7'' 1080RGB*1920 MIPI AMOLED LTPS All angle LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | O070D0023 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 80 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||

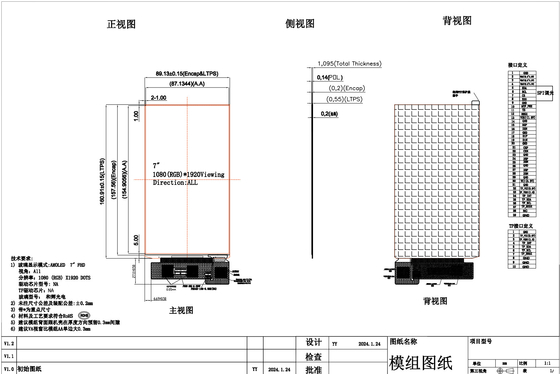

| Module Dimension: | 89.13*160.91*1.095 Mm | Resolution: | 1080RGB*1920 |
|---|---|---|---|
| Driver IC: | VTDR6130 | Interface: | MIPI 4 Lane |
| Operating Temp: | -30 +80 Degree C | Active Area: | 87.13*154.91 Mm |
| Contrast Ratio: | 10000 | Brightness: | 800 |
| Highlight: | 1080RGB*1920 AMOLED LTPS LCD Module,7 AMOLED LTPS LCD Module,All angle AMOLED LTPS LCD Module |
||
Product Description
7'' 1080RGB*1920 MIPI AMOLED LTPS All angle LCD Module
Product Description
-
-
1080 represents the number of horizontal pixels.
-
1920 represents the number of vertical pixels.
-
RGB indicates that each pixel consists of three sub-pixels: red (R), green (G), and blue (B).
-
-
Therefore, this is a 1080×1920 resolution screen, classified as FHD+ (Full High Definition+).
AMOLED (Active-Matrix Organic Light-Emitting Diode) is a display technology:-
Each pixel emits its own light, eliminating the need for a backlight.
-
Offers high contrast, wide color gamut, fast response times, and low power consumption.
-
When displaying black, the pixels turn off completely, enabling true blacks.
LTPS (Low-Temperature Polycrystalline Silicon) is a technology used to manufacture TFTs (Thin-Film Transistors):
-
-
Compared to traditional amorphous silicon (a-Si), LTPS has higher electron mobility, enabling higher resolutions and faster response times.
-
Commonly used in high-end displays, such as AMOLED and LCD.
| ITEM | SPECIFICATION |
| Pixels | 1080RGB*1920 |
| LCD Type | OLED |
| Active Area | 7 inch |
| OLED interface | MIPI 4 Lanes |
| Surface | Normal |
| OLED IC | TBD |
| Interface | MIPI |
| Wide range of operating temperature | -30 to +80 ºC |
| Wide range of Storage temperature | -30 to +80 ºC |
Applications
This type of display module is suitable for a wide range of applications, including:
-
Smartphones and Tablets: High-resolution AMOLED displays are ideal for mobile devices, offering excellent visual quality and energy efficiency.
-
Wearable Devices: Smartwatches or AR/VR headsets benefit from the vibrant colors and low power consumption.
-
Industrial Equipment: Used in control panels, HMI (Human-Machine Interface) systems, and portable diagnostic tools.
-
Automotive Displays: For infotainment systems, instrument clusters, or rear-seat entertainment.
-
Medical Devices: High-resolution displays are critical for medical imaging and monitoring equipment.
-
Gaming Consoles: Portable gaming devices or handheld consoles benefit from the high refresh rates and vivid colors.
-
Consumer Electronics: Digital cameras, portable media players, and other handheld devices.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
