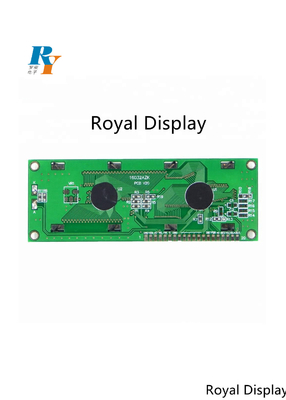

160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | RYP16032A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| LCD Display Type: | Stn | DOT Format: | 160X32 |
|---|---|---|---|
| Module Size(mm): | 122.0(W)*44.0(H)*9.60(D) | Viewing Area(mm): | 99.0(W)*24.0(H) |
| Drive IC: | St7920 | Supply Volatge Logic: | 5.25V |
| Highlight: | Stn Gray Graphic Touch Screen Module,FPC FSTN LCD Monochrome Panel,FPC Soldering Graphic LCD Screen |
||
Product Description
160X32 Stn Graphic Monochrome Dot Matrix Screen Industrial LCD Module
PRODUCT DESCRIPTION
1. 160x32 dots
2. According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen,
FSTN and STN lcd display, industrial lcd, we can match all.
3. Accessories which inclusive of driver board,LED backlight & LVDS cables.
4. ODM/OEM accetable
5. Various LCD Display Mode with different backlight color and temperature range available
| Item | Description |
| Product Name | Stn 160*32 Dots Monochrome LCD Screen |
| LCD Type | STN |
| Dot Format | 160X32 |
| Module Size(mm) | 122.0(W)*44.0(H)*9.60(D) |
| Viewing Area(mm) | 99.0(W)*24.0(H) |
| Dot Pitch(mm) | 0.59(W)*0.60(H) |
| Dot Size(mm) | 0.55(W)*0.56(H) |
| Supply Voltage Driver | 15.0V |
| Supply Volatge Logic | 5.25V |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
FAQ
1. Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
2. Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
3. Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
4. Q:How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
4. Q:How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
