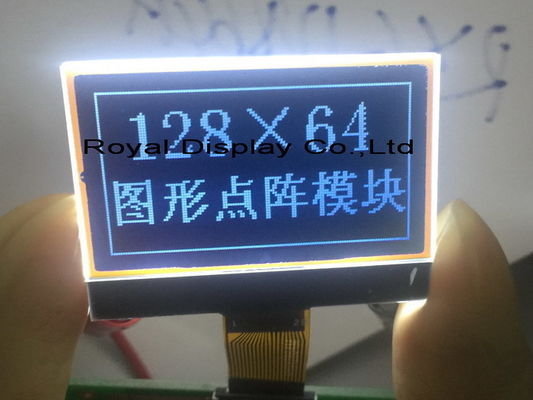

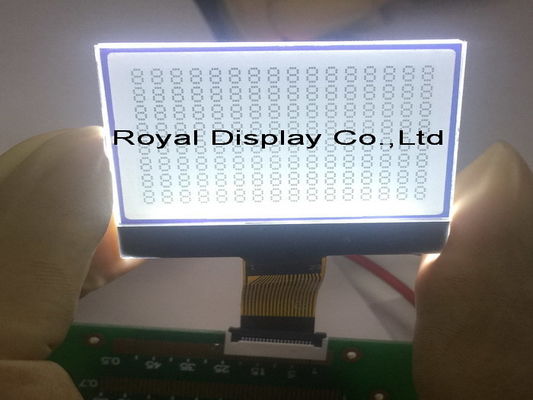

128X64 Dots Stn Film LCD Display Module St7565r Controller

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  128X64 Dots Stn Film LCD Display Module St7565r Controller

Product Details:
Place of Origin: China
Certification: ROHS, ISO
Model Number: RYG12864M
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.39-3.39
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128X64 Outline (mm): 41*35
Controller: St7565r Backlight Color: White Color
IC Package: Cog Connection: FPC-Soldering
Display Type: FSTN Power Supply: 3V
Interface: Parallel Sunlight Readable: Yes
Backlight Current (Typ): 45mA View Angle Range: No
Connector: FFC Appearance: Black On White
Viewing Direction: 12:00
High Light:

Stn Film LCD Display Module


128X64 Dots LCD Display Module


St7565r Controller Monochrome Lcd Display

Industrial Use Resolution 128x64dots STN Gray Blue Film LCD Display Module


1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option


Item Description
Product Name 128x64dots Graphic LCD Module

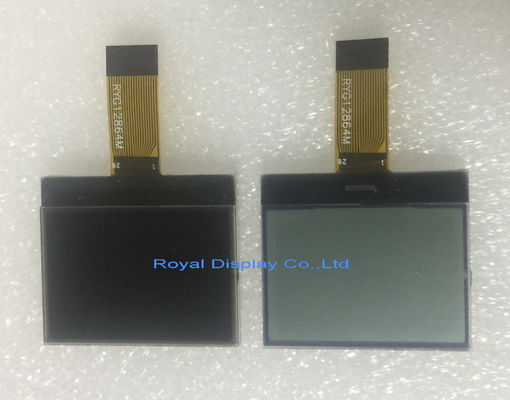

Model No. RYG12864M
Dot Format 128x64
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC

128X64 Dots Stn Film LCD Display Module St7565r Controller 0


Graphic LCDs



1. Wide variety of off the shelf sizes and resolutions


2. Most products kept in stock and can ship same day


3. Ability to display fully changeable graphics


4. Sunlight readable


5. Low power consumption


6. Fully customizable





1). Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.


2). Packing: Packed in anti-static bags with foam box to ensure safety in transportation.


3). Payment Terms: T/T, Western Union.


4). Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.


5). Service: Best after-sales service to ensure satisfaction from customers.


6). Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air


7). Warranty: Usually, product warranty for one year.


8). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.



Production Lines


128X64 Dots Stn Film LCD Display Module St7565r Controller 1





Q.Do you provide free samples?
A:For first time cooperation, samples will be charged, the amount will be returned at the mass order stage. In regular cooperation, samples are free.Sellers keep the right for any change.


Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.


Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.


Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
