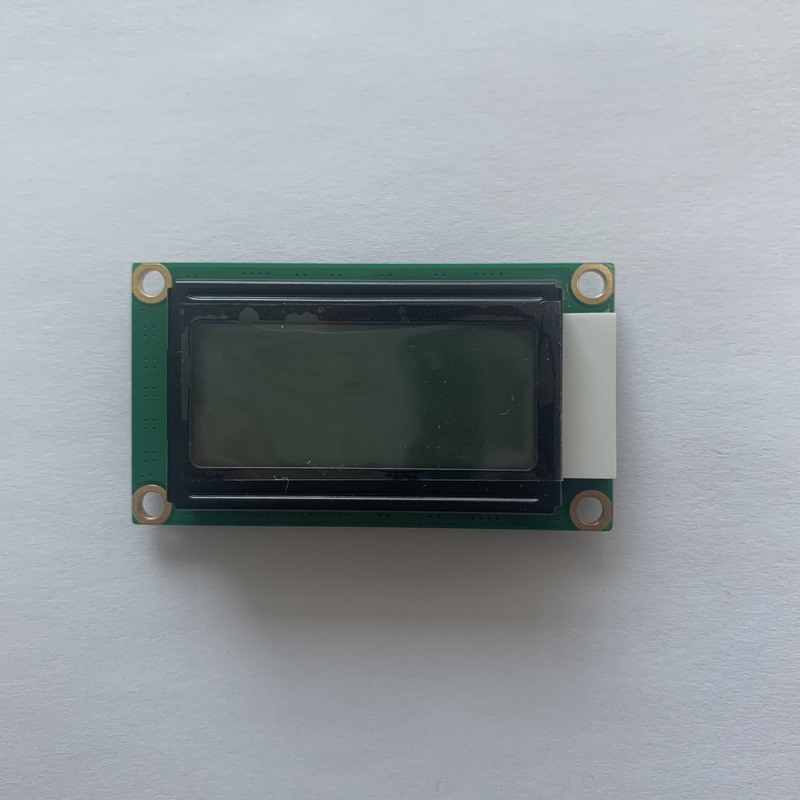

FSTN 8*2 LCD Module NT7066U 0802 Character LCD Display Module

FSTN 8*2 LCD Module NT7066U 0802 character LCD display module

AKA: 0802 Alphanumeric Display Module
Module size: 58(L) * 32(W) * Max 13.8(T)

Driver: NT7066U

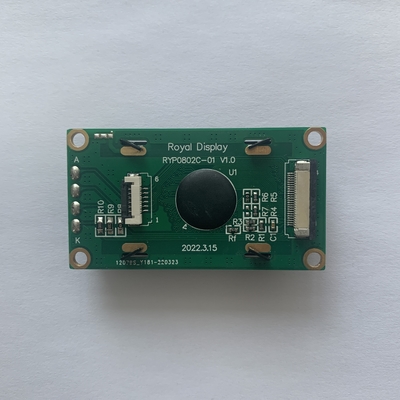

An 8 x 2 dot matrix Character LCD Module display in FSTN Positive LCD Module, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and white LED Backlight. It has a transmissive polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC NT7066U or equivalent. The interface type is Serial – SPI. This is an ROHS Compliant product manufactured with ISO standards and procedures.

CUSTOMIZATION SERVICES

Cable Customization
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that's precisely designed to make your connections streamlined and secure.

Connector Customization
Easily modify any connectors on your display to meet your application's requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors which your display may require.

Interface Customization
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

PCB Modifications
Change the shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

ABOUT ROYAL DISPLAY

Royal Display offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Royal Display offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
