High Definition Character LCD Module Transmissive / Transflective / Reflective Mode
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYB2402A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 130pcs/CTN 7.0Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 500k/Month |
|
Detail Information |
|||
| Product Name: | STN 24x2 Character LCD Module RYB2402A | Model No.: | RYB2402A |
|---|---|---|---|
| LCD Type: | STN | LED Backlight: | White |
| Highlight: | Lcd Display Module,Lcd Character Display |
||
Product Description
RYB2402A LCD Display, 24x2 with Yellow-Green or White LED Backlight

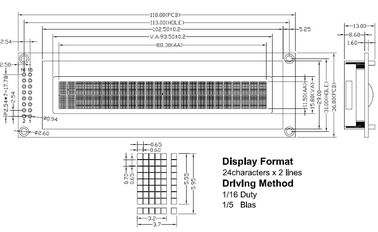

| Item | Description |
| Product Name | 24x2 COB LCD Module |
| Model No. | RYB2402A |
| Dot Format | 24 x 2 |
| Outline Dimension(mm) | 118.0 x36.0MAX |
| Assem. Size(mm) | 113.0 x 31 |
| Viewing Area(mm) | 93.5x15.8 |
| Character Size( mm) | 3.2 x 5.55 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-Gray, STN-blue VA |
| Backlight | White LED backlight or No backlight |
| Driver IC | ST7066U |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
1. Typical Applications:
Telephone, Home Automation, Industrial Instruments, Price Tag, Printer, Fax, etc
2. Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: 1:8~1:34 for one to four line characters
Wide Operation & Storage temperature range
High reliability
Low power consumption
