Programmable TFT Lcd Controller Board For Laptop Screen OEM / ODM Acceptable

Minimum Order Quantity : 50PCS Price : 22-30
Packaging Details : 50pcs/ctn 530*355*255mm Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 100K PCS/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: ROHS REACH Model Number: PCB800181

Detail Information

Part #: Controller PCB800181 Signal Input: VGA-AV
Input Voltage: 12V
High Light:

Lcd Vga Controller Board

,

Lcd Screen Controller Board

Product Description

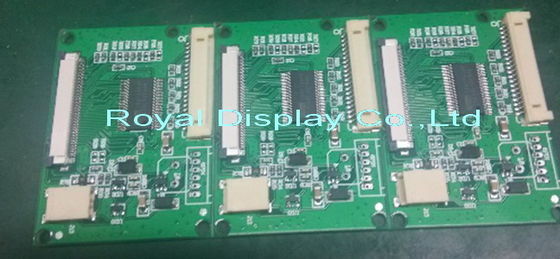

TFT Lcd Controller Board With Built - In Led Inverter PCB800181



1 , the driver board is a LVDS signal input , TTL output signal through a signal converter board , and integrated LED backlight driver , and can produce , AVDD, VGL, VGH, VCOM, such as multi- voltage LCD screen adapter plate



2 , the driver board can support ,

AT065TN14

AT070TN90

AT070TN92

AT080TN52V.1

AT080TN52

AT090TN12

AT090TN10

AT090TN13

EJ080NA05

EJ080NA05A

EJ080NA05B

So common 50PIN LCD screen , or the same function definition LCD screen (you can also consult our technical department )



3 , the driver board , LVDS input signal using a standard DF14-20P interfaces, and interface definitions using a single common market, 8 (8bit)

Universal LVDS signal line , I have a relevant supporting wire, for an additional fee ,



4 , the drive plate 8BIT default standard LVDS signal input , but can also support signal input 6BIT , see the following technical note setting



5 , if we only use the backlight power supply DC 5V, or there will be damage to the circuit board and the LCD screen as possible, we must pay attention



6 , the driver board, the capacitor element , using the Samsung brand , operating temperature up to -50 degrees to 120 degrees



7 , the driver board, resistor elements , using Taiwan's Ministry of Health, the brand, the operating temperature of up to -50 degrees to 120 degrees



8 , the driver board consolidated operating temperature of -20 degrees to 50 degrees



9 , the driver board , the main converter IC using THC original Japanese imports , THC63LVDF84B,, quality assurance
