Large Capacity TFT Lcd Controller Board Support TTL Signal Output

Minimum Order Quantity : 50PCS Price : 22-30
Packaging Details : 50pcs/ctn 530*355*255mm Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 100K PCS/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: ROHS REACH Model Number: PCB8000168

Detail Information

Part #: Controller PCB8000168 Signal Input: VGA-AV
Input Voltage: 12V
High Light:

Lcd Vga Controller Board

,

Lcd Screen Controller Board

Product Description

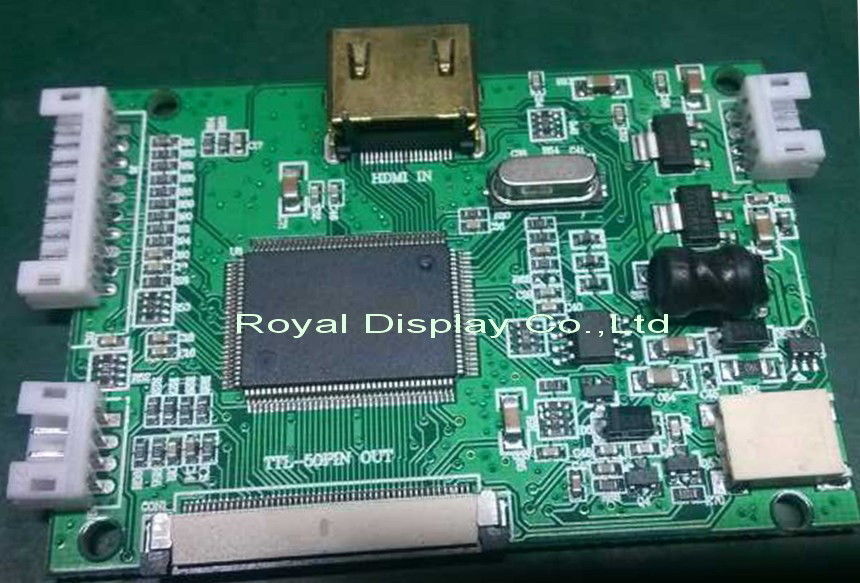

TFT Lcd Controller Board With Built - In Led Inverter PCB8000168



1 Product description :
The main driver IC board adopted
RTD2660H,
Backlight driver IC using YB1522,
Power supply using AMS1117-3.3V, AMS1117-1.8V
Resistive element , Taiwan Ministry of Health , this component operating temperature -50 degrees to 125 degrees
Capacitive element , the Samsung brand , this component operating temperature -50 degrees to 125 degrees
Large-capacity capacitor , 1206 package for the Japanese TDK capacitance , operating temperature -50 degrees to 125 degrees
HDMI seat , gold-plated to ensure product quality



The driver board:
1, 1 -way HDMI signal input and support of the IC is HDMI1.2, support HDMI 1080P display
2, support 5V DC voltage input , you can use USB, or move the power supply, but need not reverse the positive and negative , to avoid damage to the circuit board,
3, the drive plate integrated LED -backlit LCD driver board road,
4 , standard key board interface , and supports dual-color LED display
5, support TTL signal output,
Support AT070TN92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
AT070TN94 so common 50PIN TTL LCD interface

6 , with the company number PCB800100 LCD screen adapter plate that supports the following LCD screen
EJ070NA01-1024X600 resolution
EJ080NA04B-1024X768 resolution
ZJ070NA01, model score LCD Universal 40PIN
7 , with PCB800100, also can support 4 . 3,5,6,7 -inch , 40PIN universal screen definition, see AT043TN24V, 1
8 , the driver board supports remote control feature, you need to specify the remote control with
9 , the drive plate can automatically detect and display information related to the input voltage ----- Note that this feature is a custom function , you need to contact our technical department
