Royal Display Lcd Display Controller Board For Lcd Screen Vga - Av Signal Input

Minimum Order Quantity : 50PCS Price : 22-30
Packaging Details : 50pcs/ctn 530*355*255mm Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 100K PCS/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: ROHS REACH Model Number: PCB800116

Detail Information

Part #: Controller Pcb800099 Signal Input: VGA-AV
Input Voltage: 12V
High Light:

Tft Lcd Driver Board

,

Lcd Vga Controller Board

Product Description

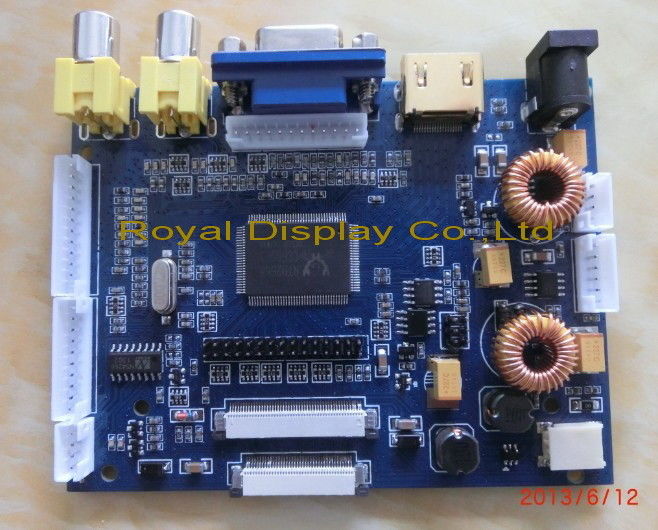

TFT Lcd Controller Board With Built - In Led Inverter pcb800099



Product Description
The driver board functions as follows:
1 -way VGA signal input, 2 AV, 1 -way HDMI, 1 -way reversing signal input,
2 , the standard backlit 6PIN, interface, external pressure plate
3 , integrated LCD driver board LED backlight driver board road,

4 , standard LVDS signal output, can support a single 6 , 8 single , dual 6 , 8, etc. LCD screen double standard LVDS signal, but only supports screen LCD supply of 3.3V

5 , standard key board interface , and supports dual-color LED display

6, support TTL signal output,

Support AT070TN92, AT070TN90,, AT070TN93, AT070TN94, AT065TN14, AT080TN52, AT090TN12, T090TN10, EJ080NA05 common 50PIN TTL LCD interface
7 , with the company number PCB800039 LCD screen adapter plate that supports the following LCD screen EJ070NA01, EJ080NA04B-ZJ070NA01, Universal 40PIN score type LCD screen , you can also support China 60PIN 's LVDS10, 1 -inch LCD screen,

8 , the drive plate to increase the remote control function ( needed by software )

9, the driver board can support the automatic detection signal switch function - this function is a custom function
