High Resolution 3.3V Graphic Lcd Display Programming 160*100 Dots

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

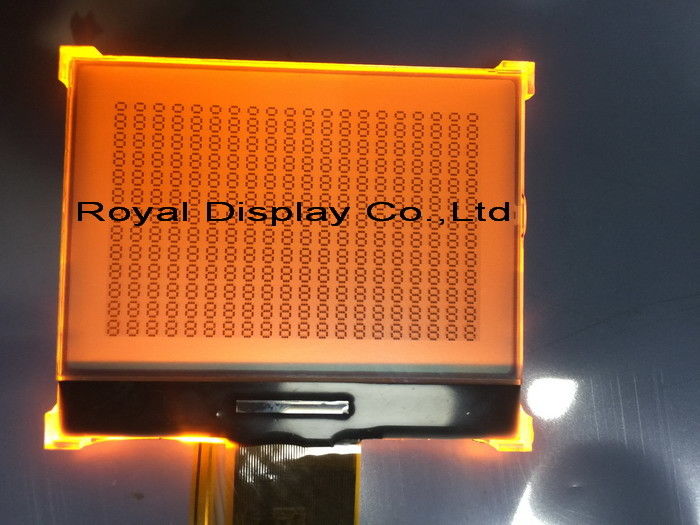

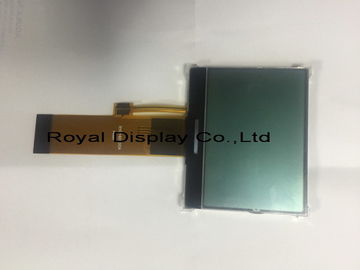

Large Image :  High Resolution 3.3V Graphic Lcd Display Programming 160*100 Dots

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG160100A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: 160*100 Dots With ST7528 RYG160100A COG Graphic LCD Module FSTN Positive Black On White Or STN Blue White Model No.: RYG160100A
Dot Format: 160X100 Viewing Angle: 6 O' Clock
LED Backlight: White Or Amber Operating Temp: -20º C~70º C
LCD Type: FSTN Postive Driver: ST7528
High Light:

Lcd Graphic Display Module

,

Transflective Lcd Display

160*100 Dots With UC1611S RYG160100A COG Graphic LCD Module FSTN Positive Black On White or Amber



Item Description
Product Name 160x100 dots Graphic LCD Module
Model No. RYG160100A
Dot Format 160 x 100
Outline Dimension(mm) 55*45
Viewing Area(mm) 47.1*31
Pixel Size( mm) 0.25 x 0.2
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight White or Amber LED backlight
Driver IC ST7528
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



High Resolution 3.3V Graphic Lcd Display Programming 160*100 Dots 0
