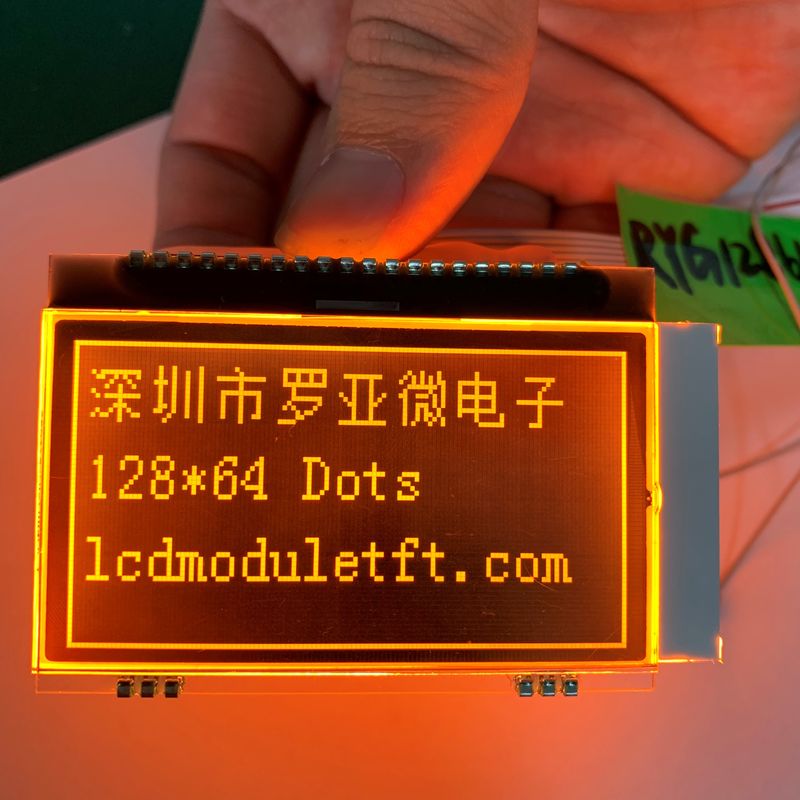

12864 Monochrome Screen Graphic LCD Module With Custom OEM Design

12864 Monochrome Screen Graphic LCD Module With Custom OEM Design
12864 Monochrome Screen Graphic LCD Module With Custom OEM Design

Large Image :  12864 Monochrome Screen Graphic LCD Module With Custom OEM Design

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG1286407
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Product Name: Graphic LCD 128X64dots STN Gray Blue Film LCD Display Module Model No.: RYG1286407
Display Format: 128x64dots Viewing Angle: 6 O' Clock
LED Backlight: Orange Controller IC: ST7565P
LCD Type: FSTN-Negative Connector: PIN
Sunlight Readable: Yes Backlight Current (Typ): 60mA
Connection: FPC-Soldering Display Model: FSTN-Gray Positive Transflective
Operating Temp.: -20º C~70º C Storage Temp.: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display

12864 monochrome screen graphic cog lcd display module with custom OEM design

General Specifications

1. Display Format 128x64 dots
2. 10.2V LCD Driving Voltage
3.
Ultra high contrast, Orange LED backlight, 3.3V, 60mA
4. 3.3V power supply
5. Transmissive FSTN-Negative display
6. Custom size


12864 Monochrome Screen Graphic LCD Module With Custom OEM Design 0


Display Specifications



 Item  Description
 Product Name  128x64dots Graphic LCD Module
 Model No.  RYG1286407-GFVWON
 Dot Format(dot)  128x64
 Outline Dimension(mm)  75.8x47.96
 VA Size(mm)  64x35.5
 AA Size( mm)   60.79x32.95
 Viewing Angle  6 O' clock
 LCD Mode  FSTN-Negative
 Backlight  Orange LED backlight
 Driver IC  ST7565P
 Power supply  3.3V
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C




Typical Applications
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range

FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .

    You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. How to order lcd?



A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4)Forwarder's contact details if you have any in China.



Q3. How long can I expect to get the sample?



A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.



Q4. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately



Custom LCD/LCM are available
12864 Monochrome Screen Graphic LCD Module With Custom OEM Design 1
