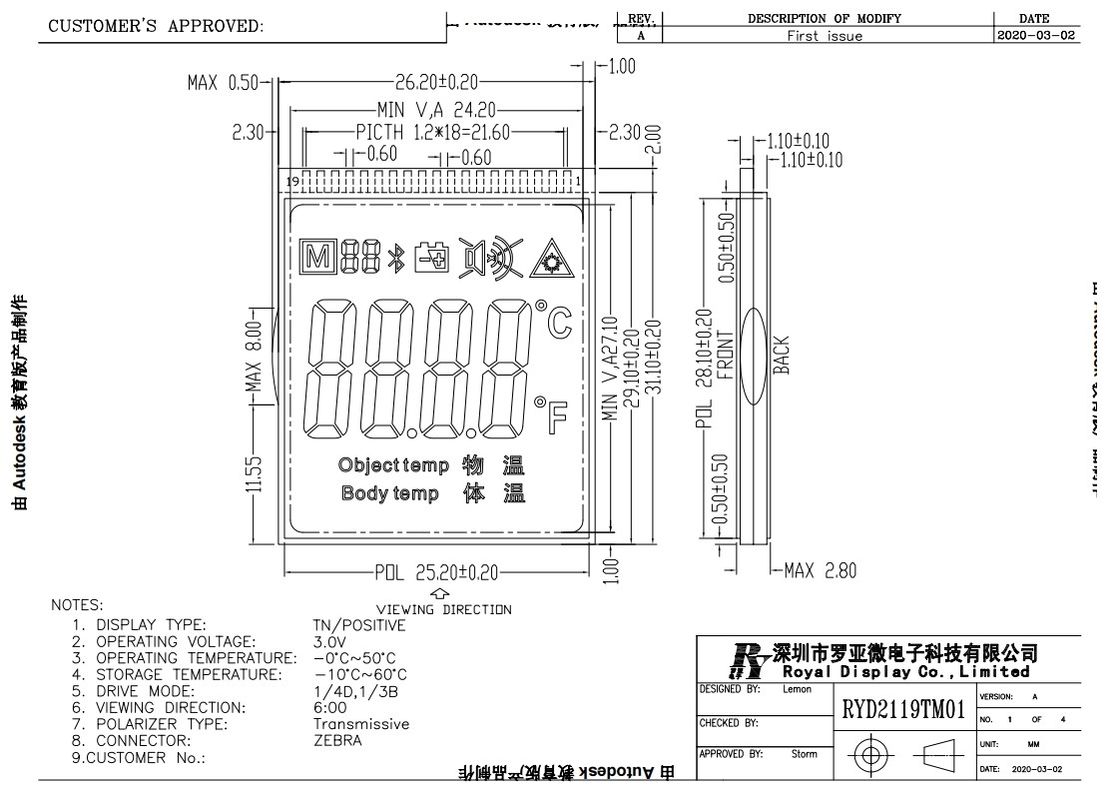

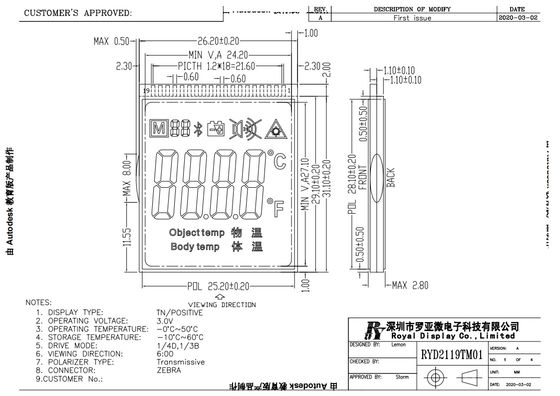

Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun

Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun
Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun

Large Image :  Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYD2119TM-01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray
Delivery Time: 10-15 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Model No.: RYD2119TM-01 Viewing Angle: 6 O' Clock
LED Backlight: Edge White Or Green Connector: Zebra
LCD Type: TN, Positive, Transmissive Sunlight Readable: Yes
Power Supply: 3V Support Font: English
Operating Temp.: -0º C~50º C Storage Temp.: -10º C~60º C
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display

Non-Contact Infrared Thermometer Temperature Gun Digital LCD Screen


Display Specifications



 Model No.  RYD2119TM-01-01
 Outline (mm)  31*26
 Viewing Angle  6 O' clock
 LCD Type  STN, Positive, Transmissive
 Backlight  Edge White or Green
 Connector  Zebra
 Power supply  3V
 Operating Temp  -0º C~50ºC
 Storage Temp  -10º C~60ºC


Typical Applications


Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun 0

Features

Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range

FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .

    You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. How to order lcd?



A: Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1) Product information-Quantity, part number



2) Delivery time required.



3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4) Forwarder's contact details if you have any in China.



Q3. How long can I expect to get the sample?



A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.



Q4. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately



Custom LCD/LCM are available


Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun 1

Digital Graphic Lcd Module Screen For Non Contact Infrared Thermometer Temperature Gun 2





Custom Made Project Order Flow



1. Enquiry


Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).



2. Counter drawing


We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.



3. Tooling samples


After drawing approval, tooling samples will be finished around 30 days



4. Mass production


After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply siutuation.
