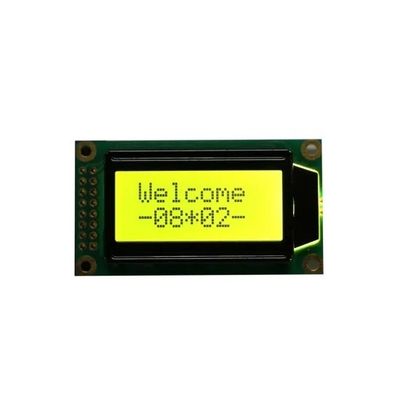

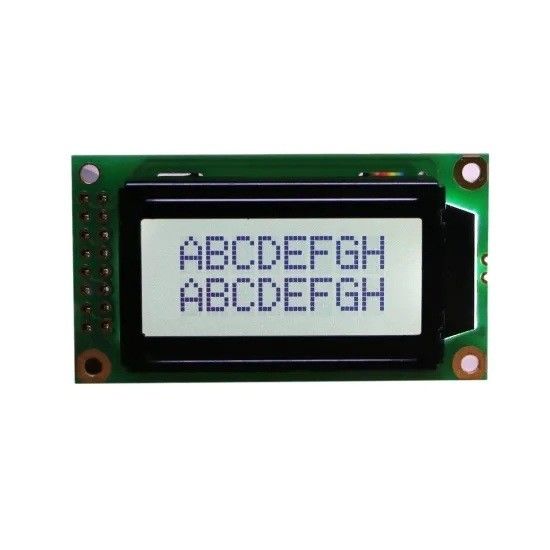

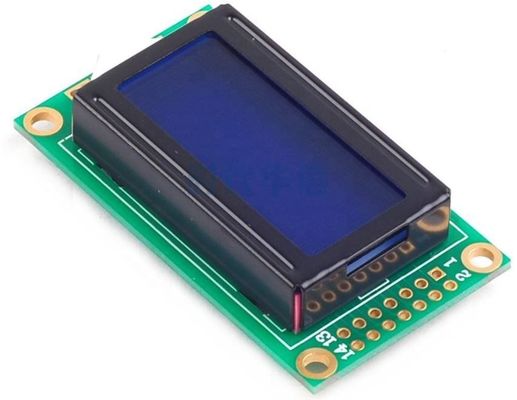

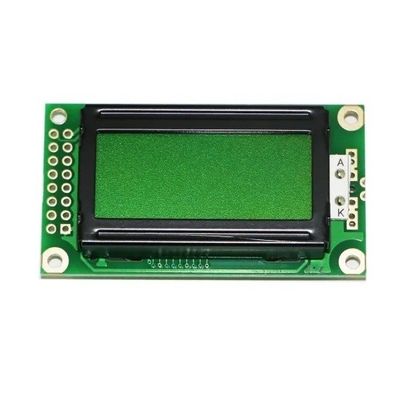

Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word

Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word
Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word

Large Image :  Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYP0802B-Y
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 1.18-1.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 8X2 Outline (mm): 58*32
Viewing Direction: 6:00 Backlight: White Or Amber LED Backlight
LCD Type: FSTN-Positive, STN-Gray Driver IC: AIP31066
IC Package: COB Operating Temp.: -20º C~70ºC
Storage Temp.: -30º C~80ºC
High Light:

COB Positive LCD Module FSTN

,

STN YG Character Lcd Display

,

Stn Monochrome Character LCD Display

Character 0802 with FSTN/Stn Blue/Yg 5V for Industrial Application LCD Display

1. 8X2 Characters
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

PRODUCT DESCRIPTION

Item Description
Product Name 8x2 Character LCD Module
Model No. RYP0802A
Dot Format 8X2
Outline (mm) 58*32
Viewing Area(mm) 28*16
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC AIP31066
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC





PRODUCT PROCESS

Character 0802 LCD Module 8*2 LCD Screen 5V Yellow Backlight White Word 0



FAQ



Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.



Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.



Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q: Are you open to OEM processing?
A: Yes, we can OEM.



Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

Q: Do you provide Customize product ?A: Yes, we could offer the customize the luminunce/tickness/Cover glass size and any interface.

Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
