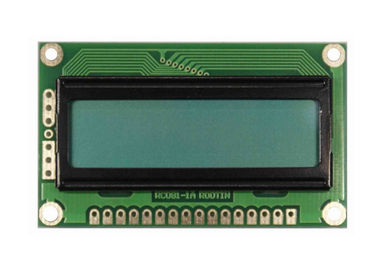

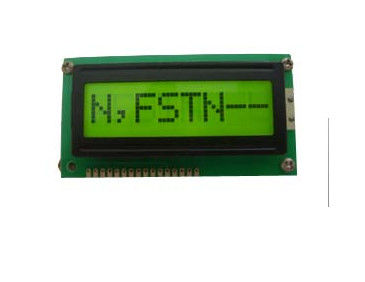

STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A

STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A
STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A

Large Image :  STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYB0801A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 130pcs/CTN 7.0Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: STN 8x1 Character LCD Module RYB0801A Model No.: RYB0801A
LCD Type: STN LED Backlight: White
High Light:

Lcd Character Display

,

Oled Character Display





STN 8x1 Character LCD Module RYB0801A Building in Japanese Russian and Other Kinds of Different Characters



Item Description
Product Name 8x1 COB LCD Module
Model No. RYB0801A
Dot Format 8x 1
Outline Dimension(mm) 84.0 x44.0MAX
Assem. Size(mm) 78.0 x 36
Viewing Area(mm) 62.0 x 18.0
Character Size( mm) 5.39 x 3.25
Viewing Angle 6 O' clock
LCD Type STN-Gray, STN-blue VA
Backlight White LED backlight or No backlight
Driver IC ST7066U
Power supply 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

1.Typical Applications:

Telephone, Home Automation, Industrial Instruments, Price Tag, Printer, Fax, etc



2.Features:



Transmissive, Transflective and Reflective Mode

Duty Ratio: 1:8~1:34 for one to four line characters

Wide Operation & Storage temperature range

High reliability

Low power consumption





STN 8x1 Character LCD Module With SGS / ROHS Certificate RYB0801A 0
