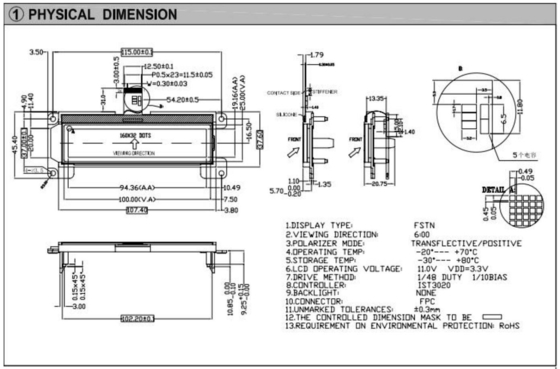

| Module Size: | 122*45.4*20.75mm | View Area: | 100*25mm |
|---|---|---|---|
| Dot Pitch: | 0.49*0.45mm | Dot Size: | 0.44*0.40mm |
| Operating Temp: | -20 To +70 Celsius Degree | Connector: | FPC |
| High Light: | 160*32 graphic LCD Module,FSTN 160*32 graphic LCD Module,Positive Transflective graphic LCD Module |
||

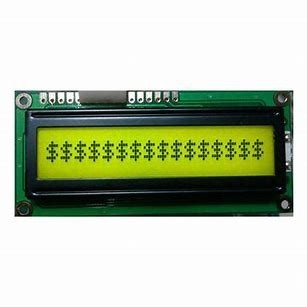

160*32 graphic LCD Module FSTN 6H positive transflective wide temperature industrial display
Product Description
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. A 160*32 graphic LCD module refers to a display panel with a resolution of 160 pixels in width and 32 pixels in height. It is commonly used for displaying graphical content, icons, and text in various electronic devices. Here are some data about a 160*32 dots graphic LCD.

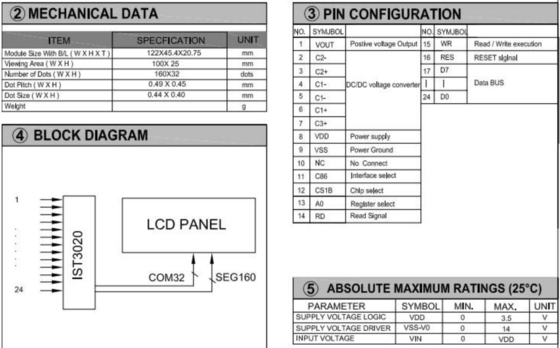

| Item | Specification |
| Product Name | 160x32 dots Graphic LCD Module |
| Model No. | RYG16032C |
| Dot Format | 160*32 |
| LCD Display Mode | FSTN Monochrome, color optional |
| View Angel | 6H |
| Driving Method | 1/48 duty, 1/10 bias |
| Backlight | WHITE |
| Drive IC | SBN1661 SBN0080 |
| Operation Voltage(V) | 3.5v |
| LCM technological conditions | RoHS |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
Product Features
A 160*32 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes a 160*32 graphic LCD module suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Product Applications
It is a 160*32 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
