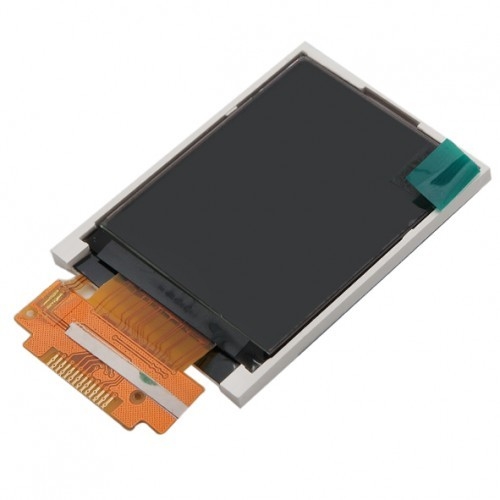

1.77 Inch TN 128*RGB*160 LCD Module With ST7735P3 262k 200:1 Display

1.77 inch TN 128*RGB*160 LCD Module with ST7735P3 262k 200:1 display

Product Description

RGB TN LCD (Red, Green, Blue Twisted Nematic Liquid Crystal Display) is a type of LCD technology that utilizes a twisted nematic liquid crystal layer and separate red, green, and blue subpixels to create color images. Here's some information about RGB TN LCD:

Color Reproduction: RGB TN LCD displays are capable of reproducing a wide range of colors by combining the intensities of red, green, and blue subpixels. This additive color model allows for the creation of various hues and shades.

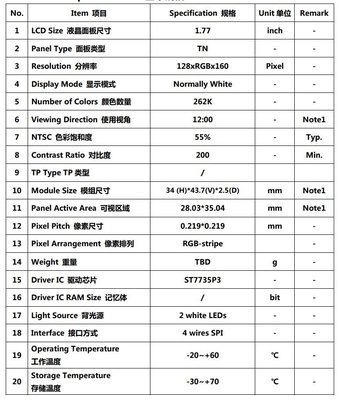

ITEM	SPECIFICATION
Resolution	128*160 RGB
LCD Type	TN
Viewing Direction	12 O'clock
Controller & Driver	ST7735P3
Interface Mode	4 wires SPI
Backlight Color	White
Wide range of operating temperature	-30 to 60
Wide range of Storage temperature	-30 to 70

​



Product features

​

Twisted Nematic (TN) Technology: TN is a common LCD technology that controls the alignment of liquid crystal molecules by applying a voltage. This twisting action controls the passage of light through the display, resulting in the display's optical properties, such as contrast and viewing angles.

Fast Response Time: One of the advantages of RGB TN LCD is its fast response time. TN displays can switch pixels on and off quickly, making them suitable for applications that require rapid image transitions, such as gaming or fast-paced video playback.

Cost-Effective: RGB TN LCD technology is relatively cost-effective compared to other LCD technologies like IPS (In-Plane Switching) or OLED (Organic Light-Emitting Diode). This affordability makes TN LCD displays popular in various consumer electronic devices.

Limited Viewing Angles: One of the drawbacks of TN LCD technology is its limited viewing angles. When viewed from certain angles, the display may exhibit color shifting or reduced contrast. This limitation can affect the quality of the image for users not directly facing the screen.

Lower Color Accuracy: Compared to other LCD technologies like IPS or OLED, RGB TN LCD displays generally have lower color accuracy. This limitation may not be noticeable for everyday use but can be a consideration for applications that require precise color reproduction, such as professional photography or graphic design.

Mainstream Applications: RGB TN LCD displays are commonly used in a wide range of devices, including computer monitors, laptops, gaming consoles, and entry-level smartphones. Their combination of cost-effectiveness, fast response time, and acceptable color reproduction makes them suitable for many mainstream applications.

While RGB TN LCD technology has its limitations, it continues to be widely used in various devices due to its cost-effectiveness and fast response times. However, other LCD technologies like IPS and OLED have gained popularity in recent years, offering improved viewing angles, color accuracy, and overall image quality.

​

Product Applications

It is a 192x64 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.

​
