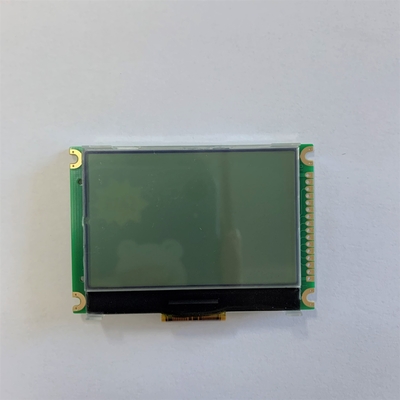

FSTN 240*160 LCD Module Graphic With UC1611S Monochrome Positive Display Screen

FSTN 240*160 LCD Module Graphic with UC1611S Monochrome Positive display screen

Product Description

Graphic LCD is a liquid crystal display specially used to display graphics and images. Compared with traditional character LCD screens, graphic LCD screens have higher resolution and richer display capabilities, and can display complex graphics, images and animations. Graphic LCD screens usually have higher pixel density and resolution, which can display more details and image information, providing clearer and more accurate graphics display. Graphic LCD screens can support a variety of colors and color depths, from monochrome to full color, allowing graphics and images to be presented in a richer, more vivid way. The following are some data about our 240x160 dots graphic LCD display.

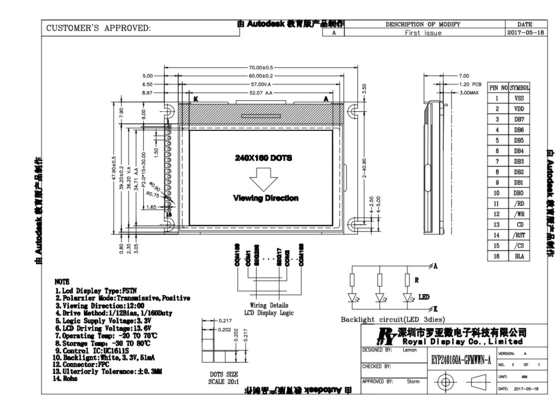

ITEM	SPECIFICATION
Display Type	240x160 DOTS
LCD Type	FSTN
Polarzier Mode	Transmissive, Posit
Viewing Direction	12:00
Drive Method	1/12Bias,1/160Duty
Logic Supply Voltage	3.3V
Driver Condition	1/128Duty , 1/16Bias
Viewing Direction	12 O'clock
Control IC	UC1611S
Backlignt	White,3.3V,51mA
Connector	RA6963 or eqv
Logic Supply Voltage	FPC14
Wide range of operating temperature	-30 to 70
Wide range of Storage temperature	-40 to 85

​



Product features

A 240x160 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.

*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.

*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.

*Versatility: The ability to display custom graphics and images makes it suitable for a wide range of applications.

*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.

*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.

*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.

*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.

*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.

​

Product Applications

It is a 240X160 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.

​
