10.1 Inch TFT LCD Module INNOLUX P101SFA-AF0 Diagonal 1600*RGB*2560

10.1 inch TFT LCD Module INNOLUX P101SFA-AF0 diagonal 1600*RGB*2560

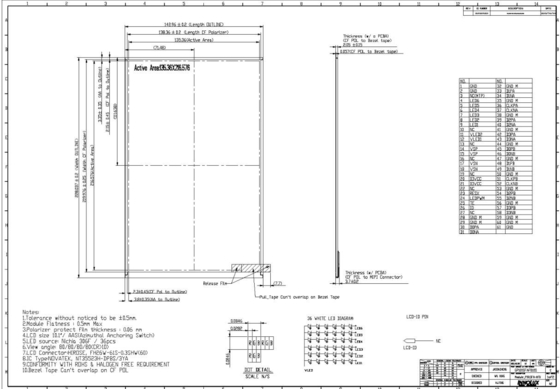

Description of TFT LCD MODULE INNOLUX P101SFA-AF0

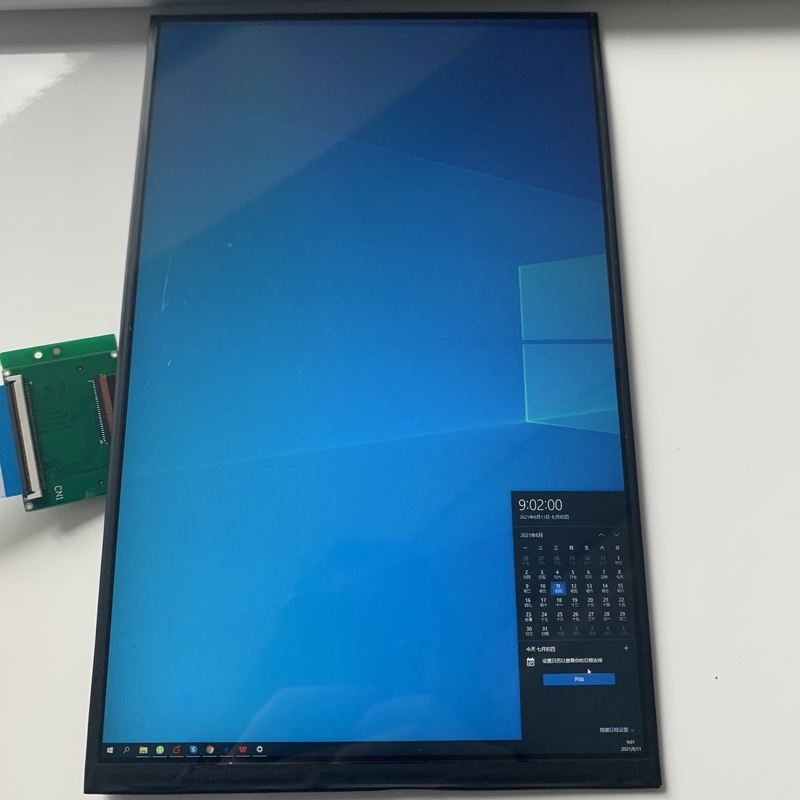

P101SFA-AF0 is a 10.1” (10.1” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 61 pins MIPI interface.

MIPI interface (Mobile Industry Processing Interface)

The Display Serial Interface standard defines protocols between a host processor and peripheral devices that adhere to MIPI Alliance standards for mobile device interfaces. The DSI standard builds on existing standards by adopting pixel formats and command set defined in MIPI Alliance standards. DSI-compliant peripherals support either of two basic modes of operation: Command Mode and Video Mode. Note: The product only supports Video Mode operation. Video Mode refers to operation in which transfers from the host processor to the peripheral take the form of a real-time pixel stream. In normal operation, the display module relies on the host processor to provide image data at sufficient bandwidth to avoid flicker or other visible artifacts in the displayed image. Video information should only be transmitted using High Speed Mode. To reduce complexity and cost, systems that only operate in Video Mode may use a unidirectional data path.

About TFT LCD Display

Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.

The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.

The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.

Features of TFT LCD Module

1. Customizable FPC cables, LED backlights, and bezels
2. Capacitive and Resistive options available for every display
3. Most products are kept in stock and can ship same day
4. Multiple interfaces available

5. Broad selection of off the shelf products
6. Sunlight readable options available

Applications

The 2.4-inch TFT LCD display is a common LCD display with small size and resolution, and is widely used in various electronic devices and application scenarios. The 2.4-inch LCD Module finds applications in various electronic devices and systems, such as handheld devices, industrial control panels, medical instruments, automotive display, consumer electronics, embedded systems, test and measurement equipments, home appliances and so on.

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time.

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
