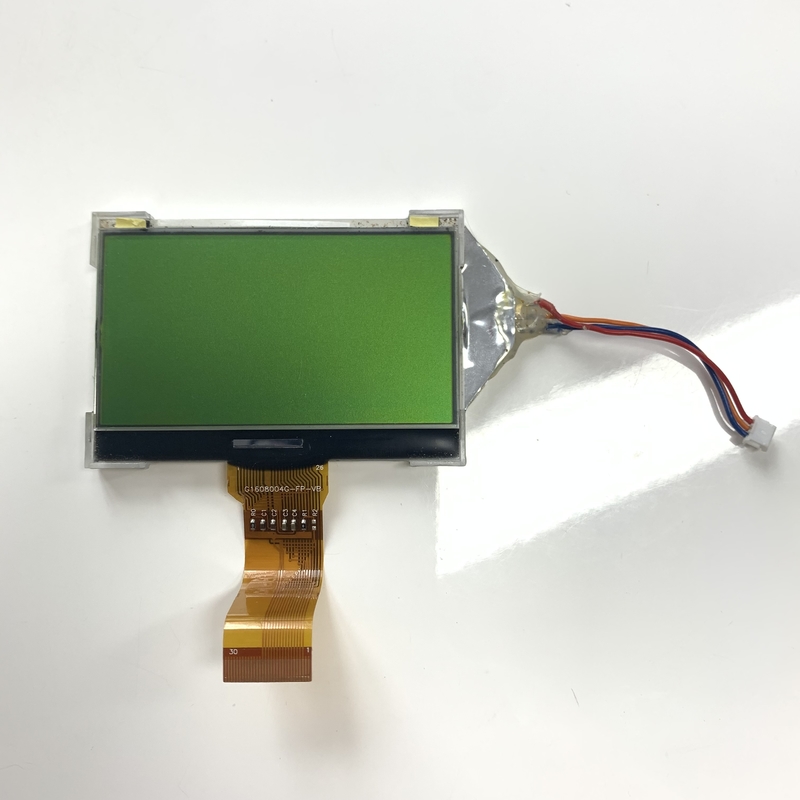

6 O'Clock View 160X80 Dots Graphic LCD Display STN Y/G Transflective Monochrome

Product Description

A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns.It has a standardized array of internal components. The most common type is a graphical dot matrix LCD screen module. The dot matrix LCD screen is composed of many display points, each with different number of points. The 160x80 dot matrix LCD screen has a horizontal number of 160 points and a vertical number of 80 points, totaling 160x80 points. By manipulating these points, we express the graphics or text we want to present in our field of vision.

The Datasheet of 160x80 Dots Graphic LCD Display Module

Features

1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)

2. IC has powerful functions and good stability

3. Low display power consumption

4. Simple interface and convenient command operation

5. Operating temperature: -20°C -70°C

6. Storage temperature: -30°C -80°C

Applications

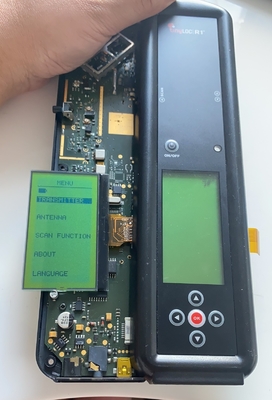

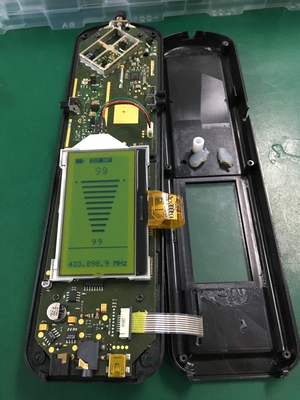

128x64 dot matrix graphic LCD screens are widely used in various electronic devices, such as digital multimeters, portable measuring instruments, electronic game consoles, mini TVs, etc. They can display simple graphics, numbers, symbols and text and provide basic information display functions. 128x64 dot matrix graphic LCD screen can be used in various instruments and meters, such as laboratory instruments, measuring equipment, industrial instruments, etc. They can also display measurement results, curve graphs, alarm information, etc., providing intuitive data display and monitoring functions. They are more suitable for displaying basic information such as simple graphics, text, and symbols, and can provide sufficient display capabilities in some scenarios.

Support and Services

FAQ

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 5~10 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
