Product Details:
Payment & Shipping Terms:
|
| Display Type: | 20(Characters)x4(Line) | View Direction: | 6 O'Clock |
|---|---|---|---|
| Outline Size(mm): | 98.0(L)X60.0(W)X13.5(T) | Viewarea(mm): | 76.0X25.4 |
| Interface Mode: | 8bit | Controller&Driver: | Splc780d1-021A |
| Operating Temperature: | -20°C To +70°C | StorageTemp.(ºC): | -30 °C To +80°C |

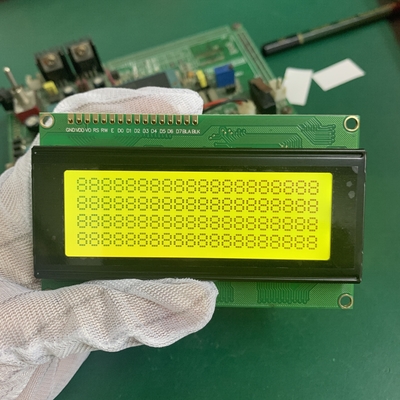

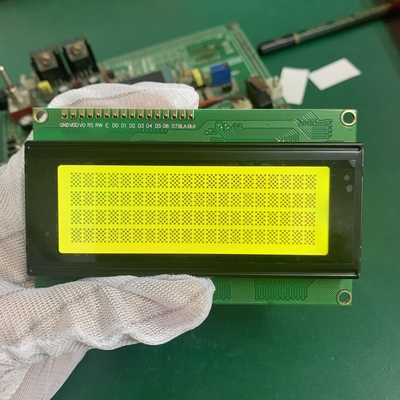

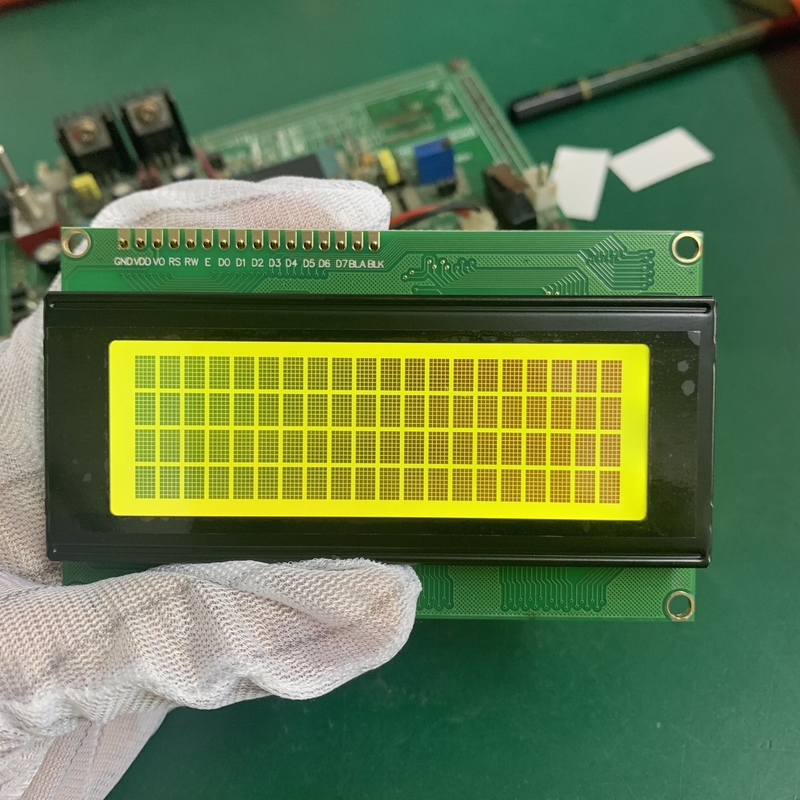

Character LCD is a liquid crystal display technology used in electronic devices that display text and simple icons, usually presented in a fixed character size and arrangement. A 20x4 character LCD refers to a liquid crystal display (LCD) module that can display 20 characters in each of its four rows. It is commonly known as a 20x4 character LCD or 20x4 alphanumeric LCD. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. Here is the datasheet of our 20x4 character LCD module.
The Datasheet of 2004 Character LCD Module
| Outline Size(mm) | 98(L)×60(W)×13.8(TMAX) |
| Lcd Type | STN/Blue or YG,Transmissive/Negative,1/16Duty,1/5Bias |
| Display type | 20(characters)×4(line) |
| ViewArea(mm) | 76×26 |
| DisplayArea(mm) | 70.41×20.8 |
| Dots size(mm) | 0.55×0.55 |
| Dots pitch(mm) | 0.60×0.60 |
| Character Size(mm) | 2.96×4.75 |
| Character Pitch(mm) | 3.55×5.35 |
| Controller&driver | AIP31066 and AIP31065 |
| View Direction | 6 O'Clock |
| Interface mode | 8 BIT |
| VDD&VOP (Type) | 5.0V&4.5V |
| Backlight (Type) | white |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
The LCD Drawing of 2004 Character LCD Module
1. Text Display: Character LCD is mainly used to display text information, usually presented in a fixed character size and arrangement.
2. Save energy: Character LCD generally consumes less power than other display technologies, such as LED or color LCD, because it only needs to activate the liquid crystal to display text, without the need for a backlight.
3. High visibility: Character LCDs generally excel in high-light visibility. They are also clearly visible in direct sunlight and are suitable for outdoor applications.
4. Cost-Effectiveness: Due to its simple design and low power consumption, character LCD is generally more affordable than other display technologies and is therefore widely used in cost-sensitive projects.
5. Embedded systems: Character LCDs are often used in embedded systems and small electronic devices, such as smart home control panels, instrument panels, user interfaces in electronic devices, etc.
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. Some common applications are industrial mater, BPG, POS machine,Washing machine, thermometer, calculator, car speedometer, GPS tracker, electric cooker, hair curler, fuel dispenser, watch and so on.
Technology leadership: We use the latest LCD technology to maintain our technological leadership in the market and provide competitive product solutions.
High-quality products: High-quality products are ensured through strict quality control and testing processes.
ODM&OED Service: The company is able to provide customized LCD screen solutions as per the needs and requirements of the customers.
Reliable delivery capabilities: Have efficient production and delivery capabilities and be able to deliver large quantities of products on time.
After-sales service: one-year after-sales service, and providing training, maintenance and technical consulting services.
Q1: How can I place an order?
-Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: Which payment way do you accept?
- We accept T/T, Western Union, MoneyGram, Paypal.
Q3: Can I get an sample?
-Sure, we provide samples but pls kindly pay some sample fee and delivery fee.
Q4: How long is the delivery time?
-It depends the products and service you need, but normally we will ship it ASAP.
Q5: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
