Product Details:
Payment & Shipping Terms:
|
| Display Type: | 40(Characters)x4(Line) | Dots Size(mm): | 0.5X0.55 |
|---|---|---|---|
| Module Size With B/L(W X Hx T)(mm): | 199X54X15 | View Area(mm): | 147X29.5 |
| Controller&Driver: | St7065 And St7066 | Dots Pitch(mm): | 0.57X0.62 |
| Operation Temp.(℃): | -20 To +70 | Storage Temp.(℃): | -30 To +80 |

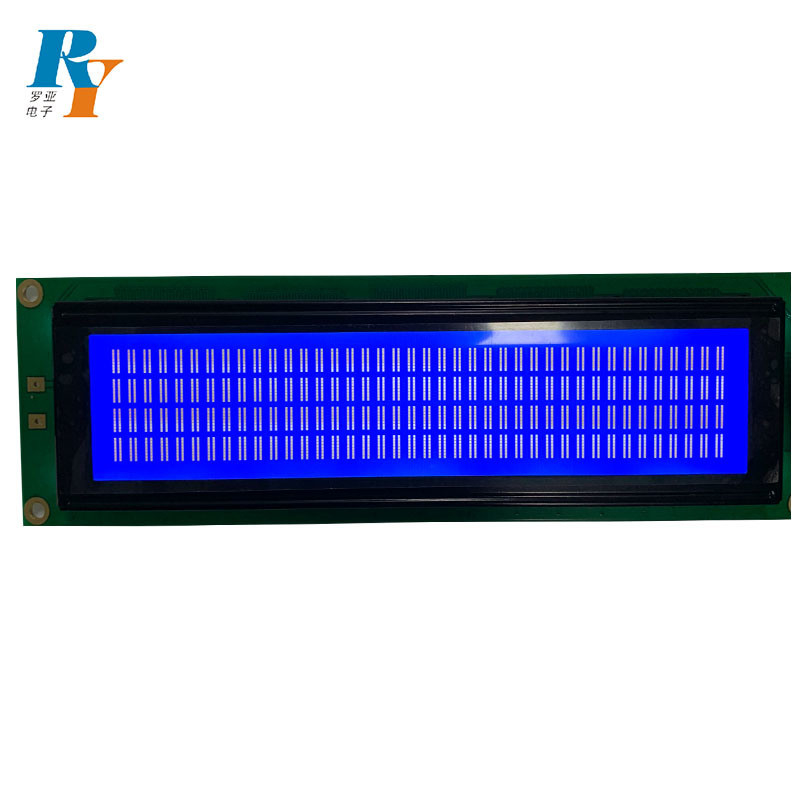

Character LCD is a liquid crystal display technology used in electronic devices that display text and simple icons, usually presented in a fixed character size and arrangement. A 40x4character LCD refers to a liquid crystal display (LCD) module that can display 16 characters in each of its four rows. It is commonly known as a 40x4character LCD or 40x4 alphanumeric LCD. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. Here is the datasheet of our 40x4 character LCD module.
The table contains specific instructions.
| Module Size With B/L(W X HX T)(mm) | 199x54x15 |
| Driving Method | 1/16Duty,1/5Bias |
| Display type | 40(characters)×4(line) |
| View Area(mm) | 147x29.5 |
| Dots size(mm) | 0.5x0.55 |
| Dots pitch(mm) | 0.57x0.62 |
| Controller&driver | ST7065 and ST7066 |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
The drawing of 4004 character LCD module
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. Some common applications are industrial mater, BPG, POS machine,Washing machine, thermometer, calculator, car speedometer, GPS tracker, electric cooker, hair curler, fuel dispenser, watch and so on.
• Professtional team to provide the pre-sales, on-sales and after-sales service.
• OEM&ODM service.
• Drawings and Related procedures service.
• Best Quality with direct factory price.
• Faster reply service within 24 hours.
• One year warranty service.
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display. More than 90% products are customized products. Also, we can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our professtional team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Q1:Can I get an sample?
-Sure, we provide samples but pls kindly pay some sample fee and delivery fee.
Q2: Can I customized my products?
- Sure, pls send you requirement and detailed information.
Q3: How can I place an order?
-Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q4: How long is the delivery time?
-It depends on your products and service. Generally, it spents 15~30 working days.
Q5: What's the MOQ?
-It depends on the product type. We accept small orders..
