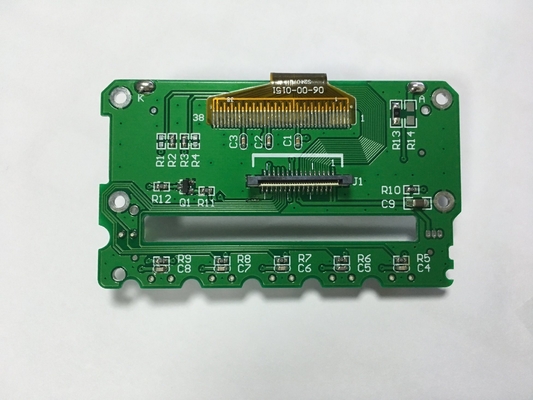

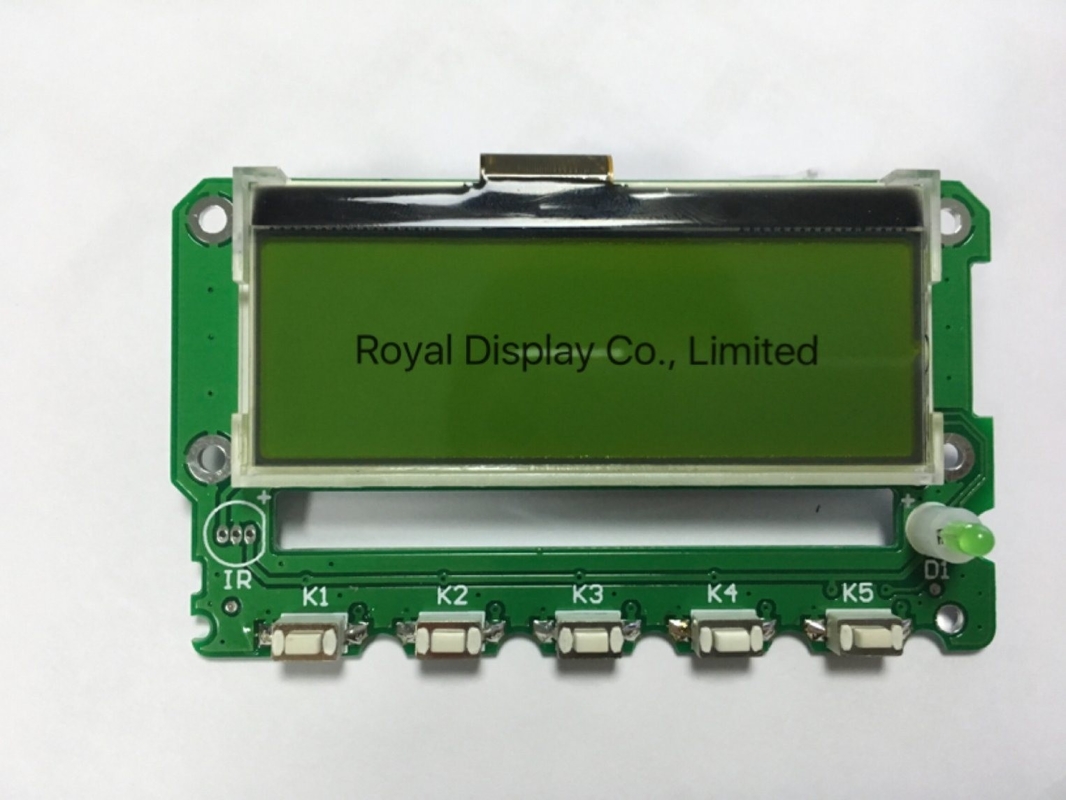

FSTN COG Module 122X32 Dots Graphic LCD Display with FPC Connector
Description of 122x32 dots graphic LCD display
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. FSTN is a display mode that stands for Film compensated Super Twisted Nematic. It is a type of LCD (Liquid Crystal Display) technology that provides improved contrast and viewing angles compared to standard TN (Twisted Nematic) displays. FSTN displays are known for their high-quality grayscale rendering and better readability in different lighting conditions.A display with 122x32 pixels in FSTN (Film compensated Super Twisted Nematic) mode refers to a specific type of graphical display that can show 122 columns and 32 rows of pixels. Here are some data about our 122x32 dots graphic products.
The General Specifications of 122x32 dots graphic LCD display
| Item | Specification |
| Product Name | 122x32dots Graphic LCD Module |
| Model No. | RYP12232A-GYMSWN-A |
| Dot Format | 122x32 |
| Outline Size(mm) | 79.0(L)×46.0(W)×11.2(T) |
| Viewing Area(mm) | 54.8×19.1 |
| Display Area | 48.78×14.38 |
| Viewing Angle | 12 O' clock |
| Dot Size(mm) | 0.38×0.43 |
| Dot Pitch(mm) | 0.40×0.45 |
| Driver IC | ST7567(cog) |
| LCD Type | STN/Y-G, Transmissive, Positive,1/33Duty,1/6Bias |
| Backlight(Type) | White, 3.1V,60 mA Uniformity>=75% |
| Interface mode | 8 BIT 8080 |
| VDD&VLCD(Type) | 3.3 V & 8.3 V |
| LCM technological conditions | RoHS |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -40º C~85ºC |
The Outline Dimensions of 122x32 dots graphic LCD display
Features of 122x32 dots graphic LCD display
A 122x32 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
1. Support display capacity: 122x 32 Pixels dots with FSTN mode.
2. On-chip Display Data RAM , Capacity: 122×32 = 3904 bits.
3. Serial interfaces are supported.
4. Abundant command functions Display data.
5. Static drive circuit equipped internally for indicators.
6. Low-power liquid crystal display power supply circuit equipped internally.
7. High-accuracy voltage adjustment circuit.
8. CR oscillator circuit equipped internally.
9. Extremely low power consumption.
Applications of 122x32 dots graphic LCD display
It is a 122x32 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards.
This module is widely used in various instruments, smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
