Product Details:
Payment & Shipping Terms:
|
| Display Mode: | FSTN /Positive, Transmissive | Display DOT Color: | Black |
|---|---|---|---|
| Blackground Color: | White | Display Format: | 8(Characters) X 2(Line) |
| IC: | St7066 | Driving Method: | 1/16 Duty, 1/5 Bias |
| Viewing Direction: | 6 O'clock | Backlight: | LED(White) |
| Module Size(mm): | 58.00(W) X 31.87(H) X 13.5(T) | Viewing Area(mm): | 38.00(W) X 16.00(H) |
| Effective Display Area (mm): | 27.45(W) X 11.50(H) | Number Of Dots: | 8(Characters) X 2(Line) |
| DOT Size(mm): | 0.55(W) X 0.65(H) | DOT Pitch(mm): | 0.60(W) X 0.70(H) |

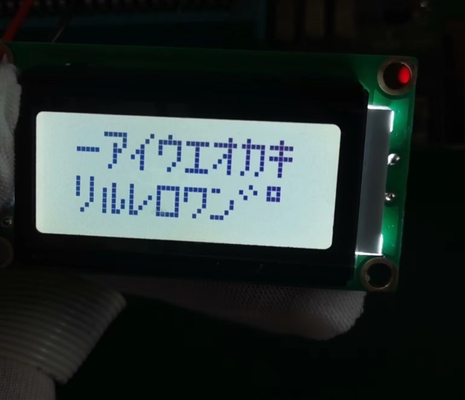

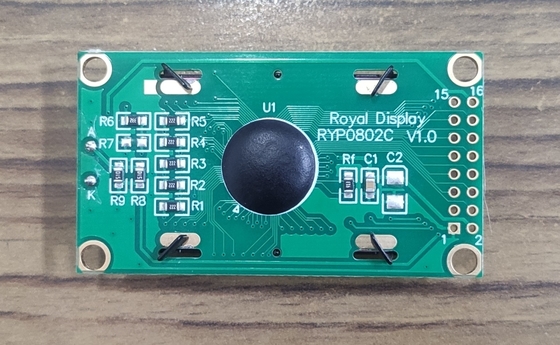

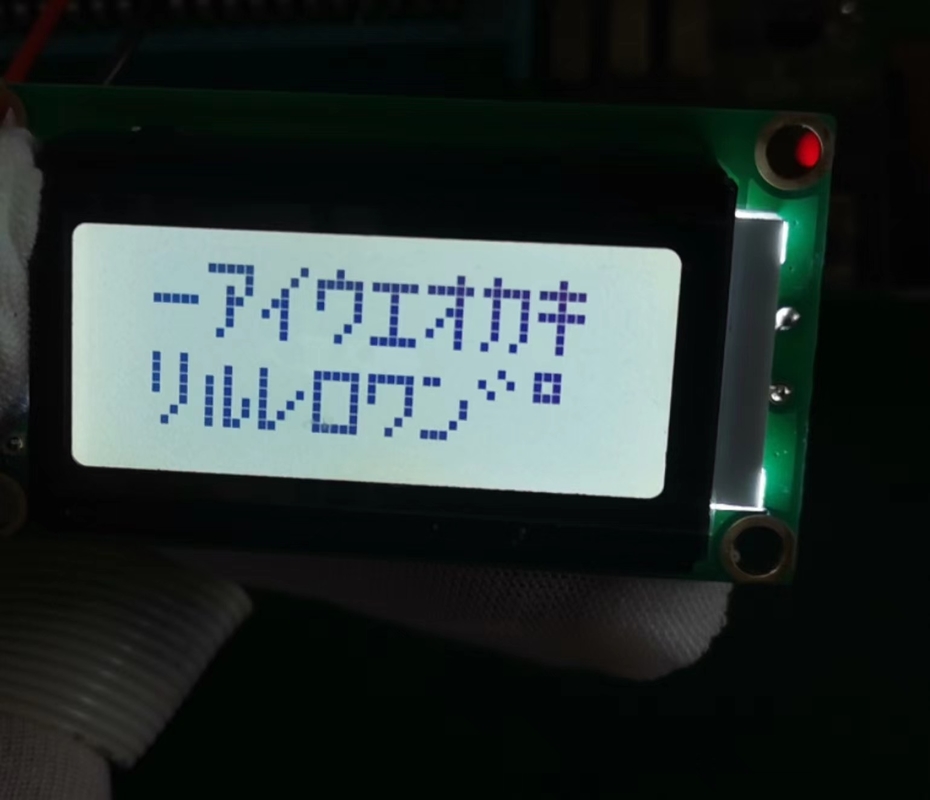

8x2 FSTN/Positive Character Monochrome LCD Display with White LED BlacklightP
Product Description
The 0802 character LCD (Liquid Crystal Display) module, also known as an 8x2 character LCD display, is a compact alphanumeric display that can show eight characters per line and has two lines. LCD displays utilize liquid crystal cells and electrical currents to control the visibility of characters on the screen. The table contains specific instructions.
| Display Format | 8(characters) ×2(line) |
| Display mode | FSTN /POSITIVE, TRANSMISSIVE |
| Driving Method | 1/16 Duty, 1/5 Bias |
| View Area(mm) | 38.00(W) X 16.00(H) |
| Display Area(mm) | 27.45(W) X 11.50(H) |
| Dots size(mm) | 0.55(W) X 0.65(H) |
| Dots pitch(mm) | 0.60(W) X 0.70(H) |
| Display dot color | Black |
| Blackground color | White |
| IC | ST7066 |
| View Direction | 6 O'Clock |
| Backlight | LED(WHITE) |
| VDD&VOP (Type) | 5.0V&4.5V |
| OperationTemp.(ºC) | -20 to +70 |
| StorageTemp.(ºC) | -30 to +80 |
Product Applications
Character module, is an alphanumeric display that can show characters, symbols, and numbers. It can be widely used in consumer electronics, instrumentation and measurement, industrial control systems, embedded systems, medical devices, automotive applications, information panels,education and hobby projects and so on. The 0802 character LCD display is generally cost-effective, making it a popular choice for applications that require basic text-based displays without the need for high-resolution graphics or color.
Our service
• Professtional team to provide the pre-sales, on-sales and after-sales service.
• OEM&ODM service.
• Drawings and Related procedures service.
• Best Quality with direct factory price.
• Faster reply service within 24 hours.
• One year warranty service.
Our Accessory
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display. More than 90% products are customized products. Also, we can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our professtional team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
FAQ
Q1: How can I place an order?
-Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: Which payment way do you accept?
- We accept T/T, Western Union, MoneyGram, Paypal.
Q3: Can I get an sample?
-Sure, we provide samples but pls kindly pay some sample fee and delivery fee.
Q4: How long is the delivery time?
-It depends the products and service you need, but normally we will ship it ASAP.
Q5: How would the goods be shipped?
-We ship via DHL, UPS, TNT and others.
