| Resolution: | 16x4 | Display Size: | 2.6 Inch |
|---|---|---|---|
| Outline Dimension: | 74.5*55.0*9.5mm | Display Mode: | STN/ Blue/ Yellow-green |
| Viewing Angle: | 6 O'clock | Interface Type: | 8-bit Parallel |
| High Light: | 16x4 Character LCD Module,6 O'clock Character LCD Module,1604 Monochrome LCD Module |
||

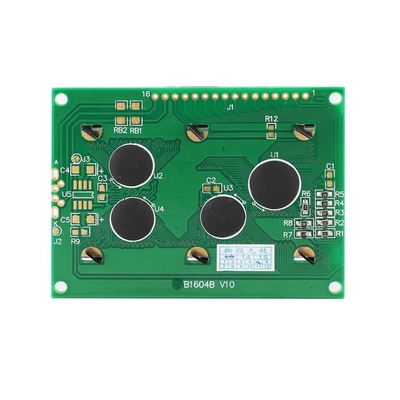

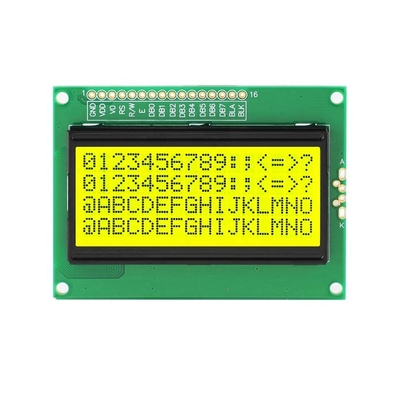

16x4 Character Monochrome Stn Lcd 1604 Character 16 Pin Display Module Lcd 16x4
Specification Of 16x4 Character LCD Display
|
Resolution
|
16x4
|
|
Viewing Angle
|
6 O'clock
|
|
Outline Dimension
|
74.5*55.0*9.5mm
|
|
Visual Area
|
61.8*25.2mm
|
|
Active Area
|
56.2*20.8mm
|
|
interface
|
8-bit parallel
|
|
controller IC
|
ST7066/AIP31066
|
|
Display mode
|
STN/Blue/Yellow-green
|
|
Backlight
|
LED White/Yellow-green
|
|
Operating Temp
|
-20°C~+70°C
|
|
Storage Temp
|
-30°C~+80°C
|
|
Number of pin
|
16 pin
|
16x4 Dots Matrix LCD Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union,L/C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
16x4 Character LCD Module FAQ
Q: Can you customize the product? what do you need?
A:The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
