| DOT Format: | 192X64 | Outline (mm): | 150.00*62.25*13.10mm |
|---|---|---|---|
| Backlight: | LED Yellow-Green/White | Connection: | Cog+FPC |
| Power Supply: | 5V | Interface: | Parallel |
| View Angle Range: | 6 O' Clock | Connector: | FFC-Connector |
| Controller: | Aip31107/Aip31108 | ||
| High Light: | COG FPC LCD Module Display,192X64 LCD Module Display,Graphic LCD Module 3.3V |
||

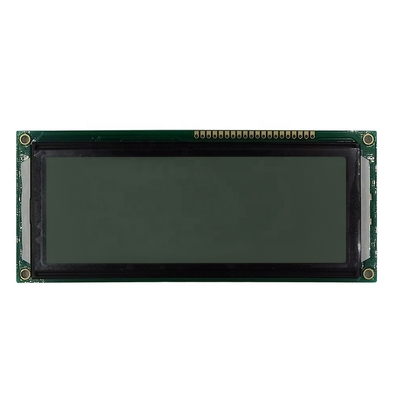

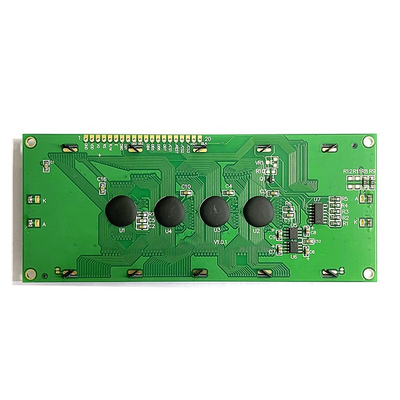

192X64 LCM Stn LCD Display 19264 Graphic COB LCD Module
Description of 192X64 Graphic LCD Module
RYP19264A is a LCD display module with resolution of 192x64 pixels, the module dimension 150.00*62.25*13.10mm. RYP19264A utilizes IC AIP31107/AIP31108 supporting 8080 interface. RYP19264A has 20 pins. The module has a PCB with screw holes and peripheral circuit for easy mounting and usage. Logic voltage is 5.5V (optional: negative voltage), Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. In RYP19264A series, there are different backlight options available such as yellow-green and white. As for the type of polarizer, customers may choose either transflective or transmissive type.
Specification of 19264 LCD module
|
Resolution
|
192*64
|
|
Viewing Angle
|
6 O'clock
|
|
External dimensions
|
150.00*62.25*13.10mm
|
|
Visual Area
|
123.5*43.0mm
|
|
Active Area
|
120.92*40.28mm
|
|
Controller IC
|
AIP31107/AIP31108
|
|
Display mode
|
FSTN/Gray,STN/Yellow-green
|
|
Backlight Type
|
LED Yellow-green/White
|
|
Module Voltage
|
VDD:5V
|
|
Operating Temp
|
-20°C~+70°C
|
|
Storage Temp
|
-30°C~+80°C
|
|
Number of pins
|
20 pin
|
Contour Drawing of 4.05inch 192X64 LCD module
