5.1 Inch 240x128 Dot Display Module 5V 22 Pin LCD Screen Graphic T6963c LCD Display

5.1 Inch 240x128 Dot Display Module 5V 22 Pin LCD Screen Graphic T6963c LCD Display

Quick Detail of 240*128 Dot Matrix LCD Module

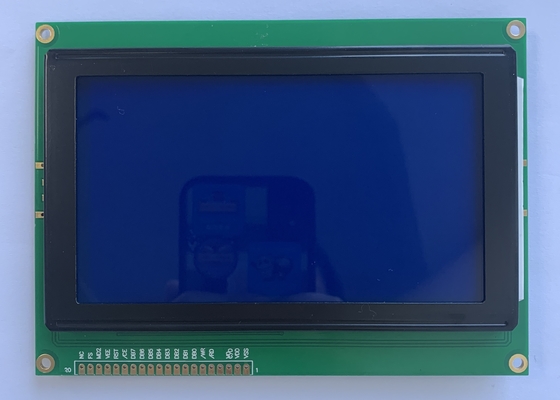

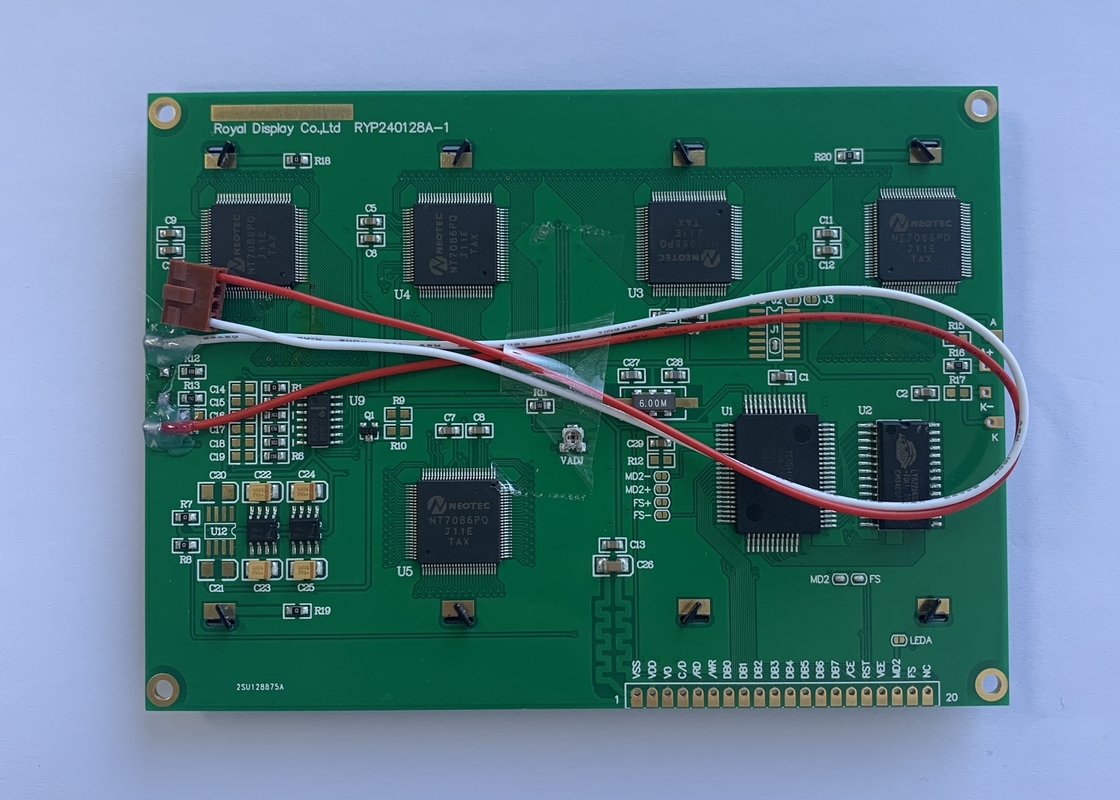

RYP240128A is a LCD display module with resolution of 240x128 pixels, the module dimension 144.0×104.0 mm. RYP240128A utilizes IC RA6963 supporting 8080 interface. RYP240128A has 22 pins. The LED is driven by pin 19/20. The module has a PCB with screw holes and peripheral circuit for easy mounting and usage. Logic voltage is 5V (optional: negative voltage), driving method is 1/128 duty. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. In RYP240128A series, there are different backlight options available such as yellow-green and white. As for the type of polarizer, customers may choose either transflective or transmissive type.

Specification of 5.1inch 240*128 Graphic LCD display

Contour Drawing of 240*128 Graphic LCD Module

Features of 240*128 Monochrome LCD Module

RYP240128A is a dot matrix 240x128 monochrome Graphic LCD display module with LED backlight. The module dimension is 144.0×104.0 mm with active area size 107.98×57.58 mm. This module using RA6963 IC supports 8080 parallel interface.

Logic supply voltage of this 240x128 Graphic LCD display module ranges from 3V-5.5V, it also features built-in negative voltage. Module can be operated at temperature within -20 to +70°C; storage temperature covers from-30 to +80℃. Feel free to send us inquiry if you’d like to know more information of this 240x128 LCD display.

Advantages of professional Graphic LCD display module supplier

1. We are professional LCD module manufacture in China with precise and advanced equipments.

2. High quality Control with CE,ROHS and so on approved.

3. More than 10 years of industry experience and involved main markets all over the world

4. Dedicated and professional sales team will offer you 24 hours online and immediate service

5. OEM and ODM support,12 months warranty for all of our products

6. Our mission is to help our customers achieve success, then fulfill our both dreams

Pre-sales service :

1. Our team design and make solutions based on different requirements from different customers.

2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer customer to keep fastly reply.

FAQ of Graphic LCD Module

1.Long Term Continuity Supply Warranty

We understand you probably worry whether we still offer the display after your long development time. Royal Display gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we’ll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.

2. What is covered under warranty and for how long?

All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment.If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3. What if I have a defective product under warranty?

We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product."Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos.

4. How do I make a warranty claim?

For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.
