| Product Name: | Graphic LCD 128X64dots LCD Display Module | Model No.: | LCM12864L |
|---|---|---|---|
| Display Format: | 128x64dots | Viewing Angle: | 6 O' Clock |
| LED Backlight: | Side White | Controller IC: | KS0107 |
| LCD Type: | FSTN-Negative | Outline L X W X H: | 78.0mm X 70.0mm X 14.3mm |
| Viewing Area L X W: | 62.0mm X 44.0mm | Active Area L X W: | 56.28mm X 38.36mm |
| Operating Temp.: | -20º C~70º C | Storage Temp.: | -30º C~80º C |
| High Light: | Stn Graphic LCD Display Module,Monochrome Graphic LCD Display Module,FSTN 128x64 lcd display |
||

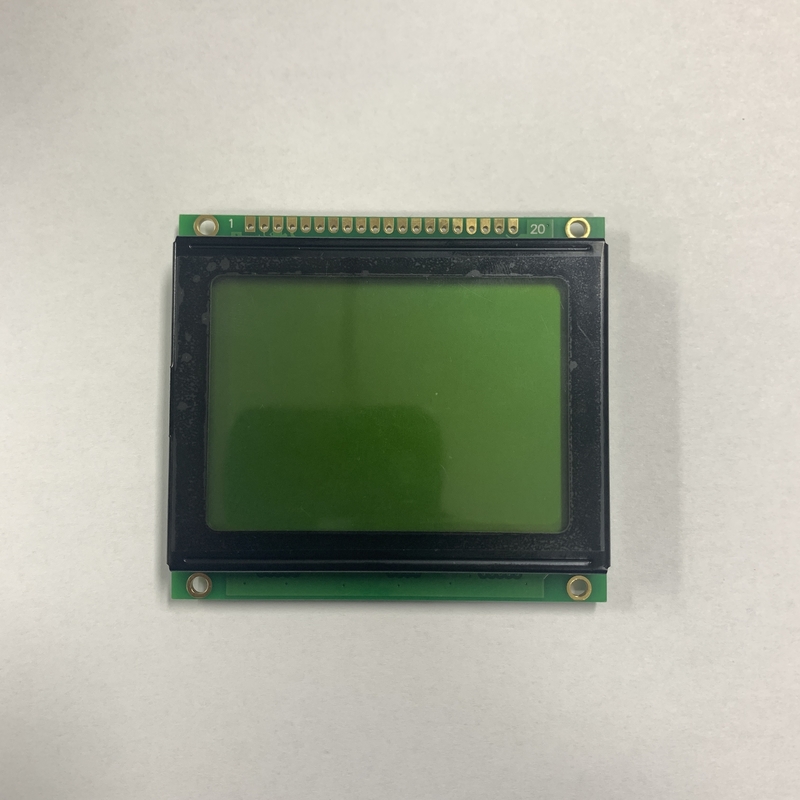

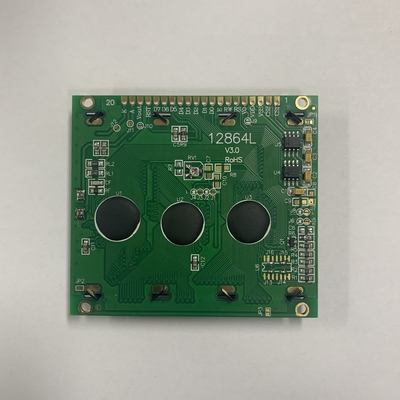

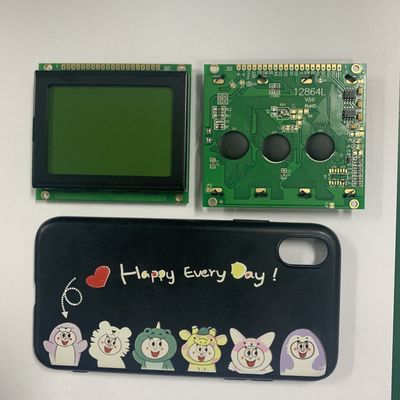

128*64 Monochrome Stn Graphic LCD Display Module 100% replce NHD-12864WG-CTFH-V#N
Quick Detail of 128*64 Graphic LCD Module
Product Name: Monochrome Graphic LCD display
| Item | Description |
| Product Name | 128x64 LCD Module |
| Model No. | LCM12864L |
| Dot Format | 128X64 |
| Outline (mm) | 78.0L×70.0W×12.5(max)H |
| View Area(mm) | 62.0x44.0 |
| Display Mode | FSTN |
| Duty | 1/64, 1/9bias |
| Driver IC | KS0107 |
| Viewing Direction | 6:00 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Contour Drawing of 128*64 Dot Matrix LCD Module
Features About Graphic LCD Module
Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.
Features
Wide variety of off the shelf sizes and resolutions
Most products kept in stock and can ship same day
Ability to display fully changeable graphics
Sunlight readable
Low power consumption
Fully customizable
Custom Made Graphic LCD Display Project Order Flow
1. Enquiry
Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).
2. Counter drawing
We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.
3. Tooling samples
After drawing approval, tooling samples will be finished around 30 days
4. Mass production
After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply situation.
