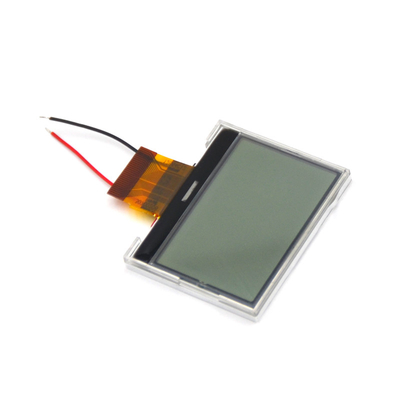

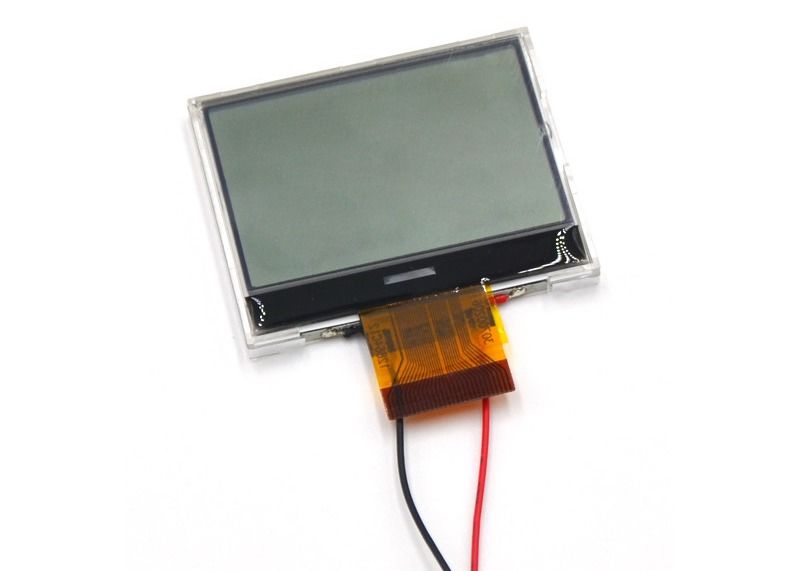

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module
Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module

Large Image :  Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYG12864-CS
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
Display Size: Custom Design Resolution: 128X64 Dots
Viewing Angle: 6 O' Clock Display Mode: FSTN, Transflective, Positive
Type: FSTN/ CSTN, Graphic Lcd Backlight: Optional Light
High Light:

Graphic 128x64 cog lcd module

,

Positive 128x64 cog lcd module

,

6 O' clock 12864 Lcd Module

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module

COG 128x64 LCD DESCRIPTION

Product Name
Graphic Display COG LCD 128x64 FSTN LCD Display
Type
COG LCD Display, Graphic Display
Dot Format
128x64 Dots
Display mode
FSTN, Transflective , Positive
Color
Black Display Dot White Background
Backlight
Green Backlight
Brightness
200cd/m2
Outline Dimension
40.80x 33.10 x 4.20mm
Viewing Area
36.00x23.50mm
Active Area
33.26x20.46mm
Dot Size
0.23x0.29mm
Dot Pitch
0.26x0.32mm
Viewing Direction
6 O'Clock
Interface
Parallel or serial, 28 Pin
Drive IC
ST7565R
Driving Method
1/64 Duty, 1/9 Bias
Supply Voltage
9.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module 0

OUR SERVICE ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/T, Western Union.

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

7. Warranty: Usually, product warranty for one year.

8. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module 1
FAQ:
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.

Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.

Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

Graphic 128x64 Dots Fstn Stn Tn COG Lcd Display Module 12864 Lcd Module 2
