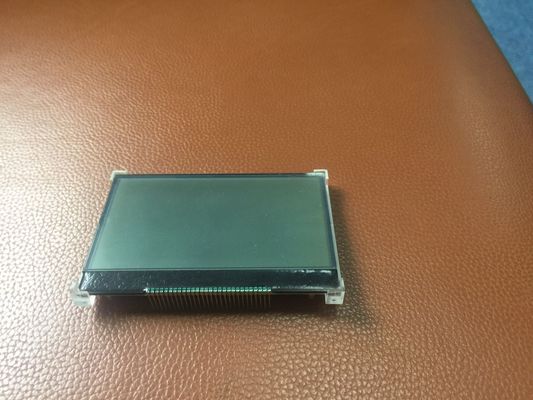

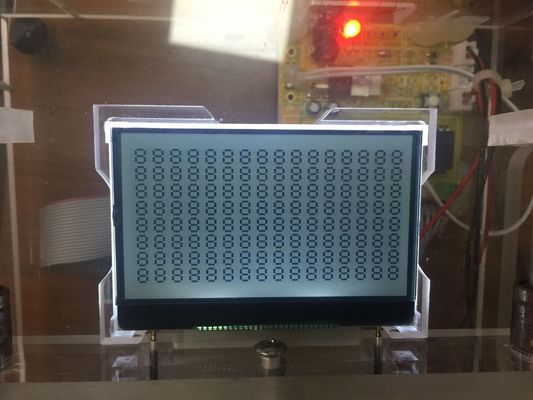

128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module

128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module
128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module 128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module 128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module

Large Image :  128x64 Dots COG LCD Module Transflective Positive FSTN Monochrome Lcd Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG12864F
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~30 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Product Name: FSTN Monochrome COG Graphic LCD Module Model No.: RYG12864F
Dot Format: 128X64 Viewing Angle: 6 O' Clock
LED Backlight: White Driver IC: ST7567
Operating Temp: -20º C~70º C LCD Type: FSTN
Connector: PIN Drive Method: 1/65 Duty, 1/9 Bias
High Light:

Transflective FSTN Monochrome Lcd Display

,

Positive FSTN Monochrome Lcd Display

,

RYG12864F Lcd Display Module



128x64dots Transflective Positive FSTN Monochrome COG Graphic LCD Module



1. Compettitive price, we have our own factory to manufacture LCD and LCM to provide your best price and service.

2. Stable customers, have a large number of long term partners are from domestic and foreign areas and won the customers recongnition and trust .



General Specifications



1. COG Graphic LCD Module

2. Dots Format, 128x64

3. Controller, ST7567R

4. STN-Gray, Blue, DFSTN-Negative, FSTN-Postive

5. LED Backlight, White, Red, Amber

6. Widely Use On Hand-held Device



Display Specifications



 Item  Description
 Product Name  128x64dots Graphic LCD Module
 Model No.  RYG12864F
 Dot Format(dot)  128x64
 Outline Dimension(mm)  40.8x34.8
 VA Size(mm)  37.7X25.1
 AA Size( mm)  34.5x21.7
 Viewing Angle  6 O' clock
 LCD Mode  FSTN-Positive, Transflective
 Backlight  White or Y/G LED backlight
 Driver IC  ST7565R
 Power supply   3V or 5V
 Interface  Parallel
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C





Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range





FAQ



Q1: How many years for warranty can you provide?


A1: Normally 1 year. Can be longer but price should be modified.



Q2: What shall we do if we find any item missing or defective after receiving the goods?


A2: Please contact us ASAP, we will check it and offer the best solution according to the situation.



Q3: Is it possible to customize the LCD modules?


A3: Yes you could let us know the concrete requirements then we will design and confirm with you.



Q4: Is it possible we appoint the delivery agent?


A4: Yes. Except the couriers we mentioned, we could use others as your requirement.
