Product Details:
Payment & Shipping Terms:
|
Lcd Display Type: | Fstn | Polarzier Mode: | Transmissive Positive |
---|---|---|---|
Viewing Direction: | 6 O'clock | Driver Method: | 1/5 Bias 1/16Duty |
Driving Voltage: | LCD=4.7V LCM=5V | IC: | NT7066UF-00 |
Connector: | LCD+PCB+LED | LED Backlight: | RGB Vf=3.5V |
High Light: | NT7066UF-00 IC Character Lcd Display,Fstn Positive 0802 Character Lcd Display,Transmissive Positive Character Lcd Display |

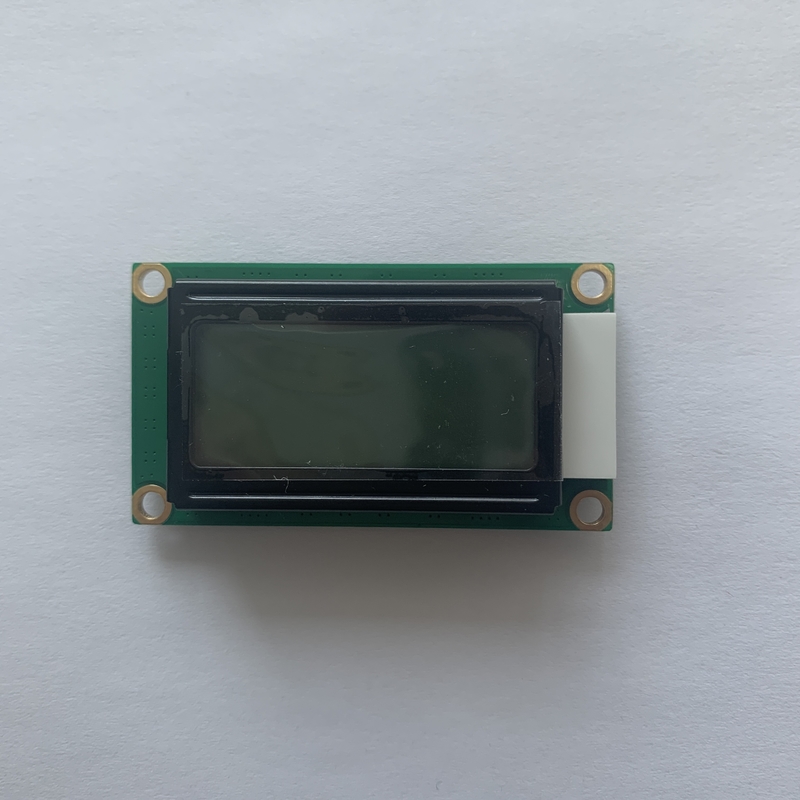

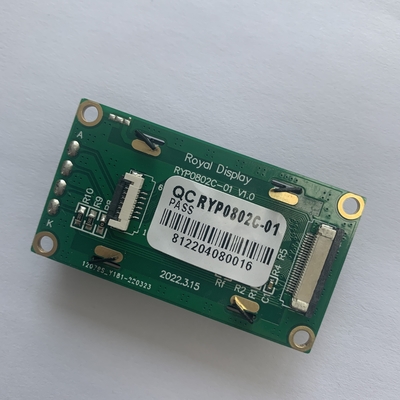

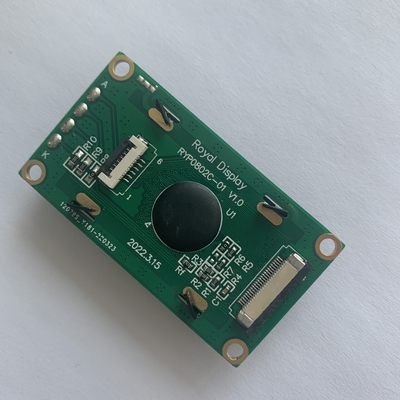

Character Lcd Module Fstn Stn 0802 Character Lcd Display With Lcd Backlight
PRODUCT DESCRIPTION
1. 8x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
Item | Description |
Display Type | Character Lcd Display |
Module Size | 58.0*32.0*13.2mm |
Viewing Area | 38.0*16.0mm |
Viewing Direction | 6 O'clock |
Operating Temp | -20º C~70ºC |
Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
Q: Can you customize the product? what do you need?
A:The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed SGS,RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display.
