Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Stn | Display Type: | 16 Characters*2 Lines |
|---|---|---|---|
| LCD Duty: | 1/16 | LCD Bias: | 1/5 |
| Viewing Direction: | 6 O'clock | Outline Dimension(mm): | 80.0(W)X36.0(H)X11.0(D) |
| Dot Size(mm): | 0.54(W)X0.60(H) | DOT Pitch(mm): | 0.59(W)X0.65(H) |
| High Light: | 1602 STN Character LCD Display,DFSTN Character LCD Display,20mA Monochrome COB LCD Module |
||

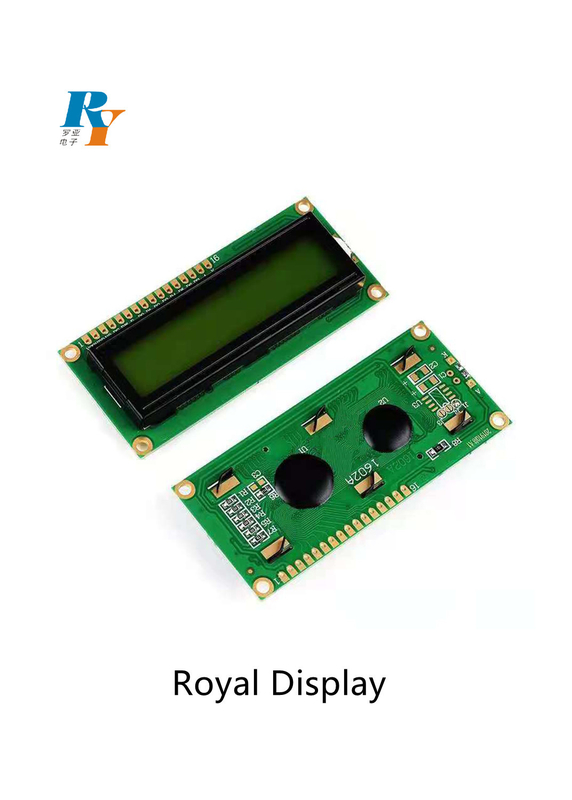

PRODUCT DESCRIPTION
1. 16x2 Characters
2. STN-YG, STN-blue, FSTN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | STN Character 8X1 LCD Display |
| Outline Dimension (mm) | 80.0x36.0x11.0 |
| Viewing Area (mm) | 64.5x14.5 |
| Viewing Direction | 6 O' clock |
| Diver IC | AIP31066 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
APPLICATION
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
FAQ
1. Q: Order process
A:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2. Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3. Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4. Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5. Q: RMA Process
A: Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed
6. Q: Notes
A: Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
