Product Details:
Payment & Shipping Terms:
|
| LCD Display Type: | FSTN | DOT Format: | 128*96 |
|---|---|---|---|
| Module Size(mm): | 62.2(W)X43.5(H)X2.85(D) | Viewing Area(mm): | 56.4(WX33.2(H) |
| Drive IC: | S6b0741 | Supply Volatge Logic: | 3.5V |
| High Light: | Stn Gray Graphic Touch Screen Module,FPC FSTN LCD Monochrome Panel,FPC Soldering Graphic LCD Screen |
||

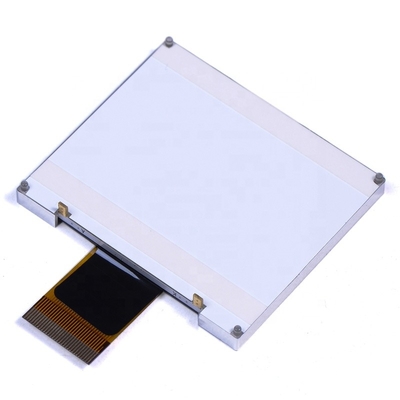

FSTN 128*96dots LCD Display Monochrome Graphic LCD Monitor
PRODUCT DESCRIPTION
1. 128x96 dots
2. According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen,
FSTN and STN lcd display, industrial lcd, we can match all.
3. Accessories which inclusive of driver board,LED backlight & LVDS cables.
4. ODM/OEM accetable
5. Various LCD Display Mode with different backlight color and temperature range available
| Item | Description |
| Product Name | FSTN 128*96dots LCD Display |
| Dot Format | 128X96 |

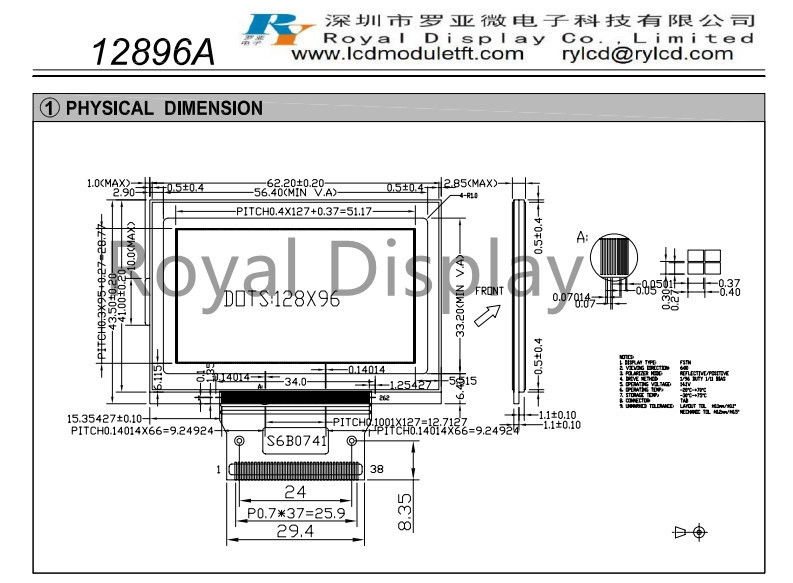

| Module Size(mm) | 62.2(W)*43.5(H)*2.85(D) |
| Viewing Area(mm) | 56.4(W)*33.2(H) |
| Dot Pitch(mm) | 0.30(W)*0.40(H) |
| Dot Size(mm) | 0.27(W)*0.37(H) |
| Driver IC | S6B0741 |
| Supply Volatge Logic | 3.5V |
| Supply Voltage Driver | 17.0V |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80º C |
OUR ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union.
4. Service: Best after-sales service to ensure satisfaction from customers.
