Hot Selling 128X64 Dots St7565p Orange Blacklight Transmissive LCD Module Display FSTN FPC Soldering
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYG1286407 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 128X64 | Outline (mm): | 75.8X47.96 |
|---|---|---|---|
| Controller: | St7565p | Backlight Color: | Orange |
| IC Package: | Cog | Connection: | FPC Soldering |
| Display Type: | FSTN | Power Supply: | 3.3V |
| Interface: | Parallel | Sunlight Readable: | Yes |
| Backlight Current (Typ): | 60mA | View Angle Range: | No |
| Connector: | FFC-Connector | Viewing Direction: | 12:00` |
| Highlight: | 128X64 Dots Transmissive LCD Module,St7565p Transmissive LCD Module,FPC Soldering Graphic Display Module |
||
Product Description

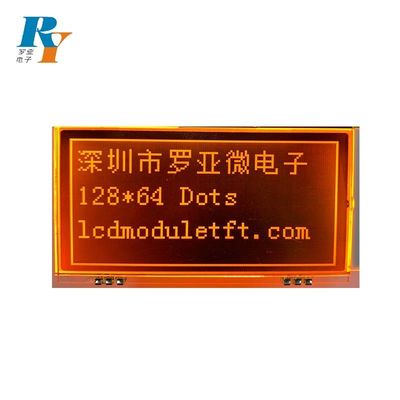

128x64dots FSTN ST7565P Transmissive LCD Module Display 100% replace WINSTAR WDO0066-TFH_#06
Product Description
1. Display Format 128x64 dots
2. 10.2V LCD Driving Voltage
3. Ultra high contrast, Orange LED backlight, 3.3V, 60mA
4. 3.3V power supply
5. Transmissive FSTN-Negative display
6. Custom size
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG1286407-GFVWON |
| Dot Format(dot) | 128x64 |
| Outline Dimension(mm) | 75.8x47.96 |
| VA Size(mm) | 64x35.5 |
| AA Size( mm) | 60.79x32.95 |
| Viewing Angle | 6 O' clock |
| LCD Mode | FSTN-Negative |
| Backlight | Orange LED backlight |
| Driver IC | ST7565P |
| Power supply | 3.3V |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Graphic LCD Display
1. Customized according to client's requirement
2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies
3. Available for different modes such as yellow-green, blue and black color.
4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.
Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..
Our Advantages

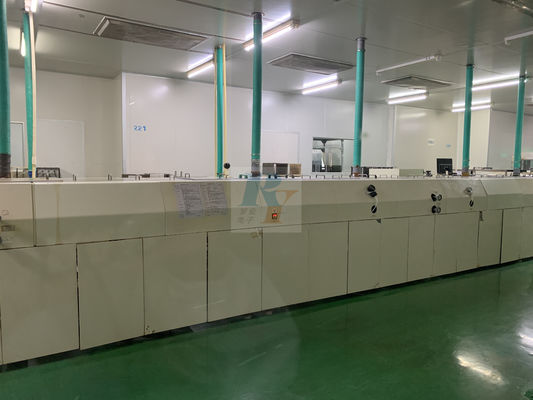

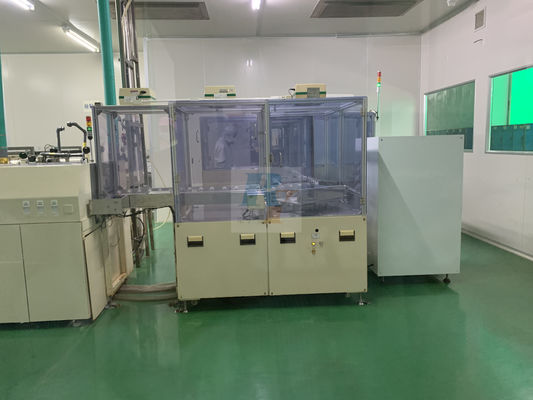

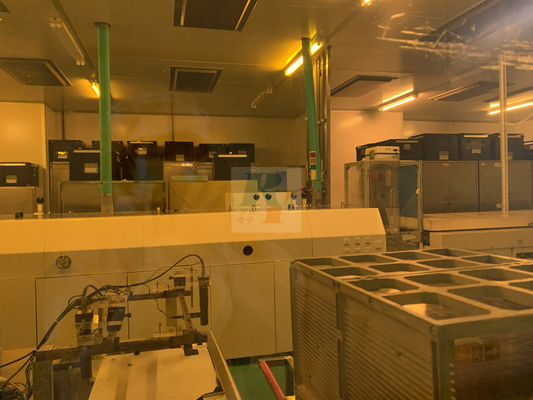

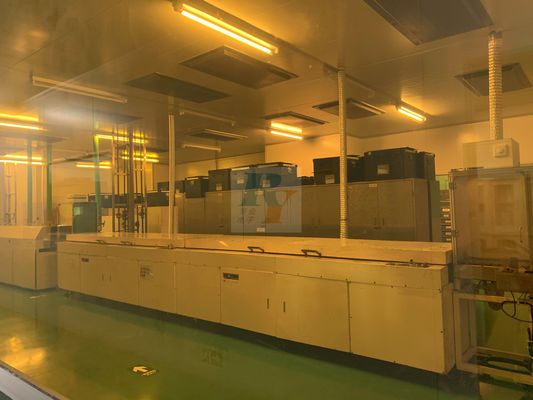

1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
