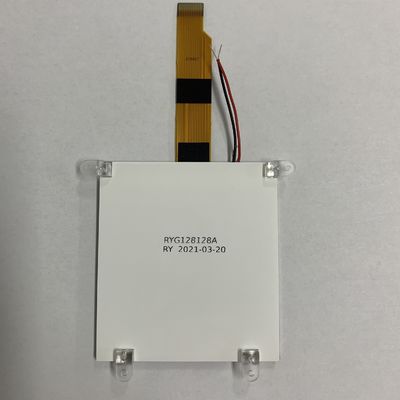

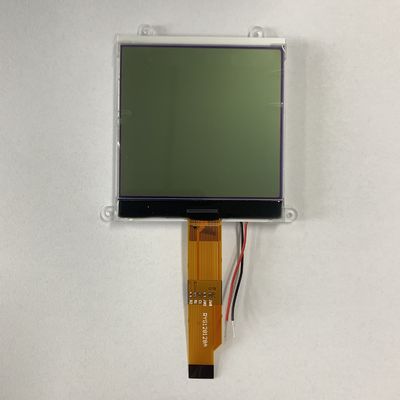

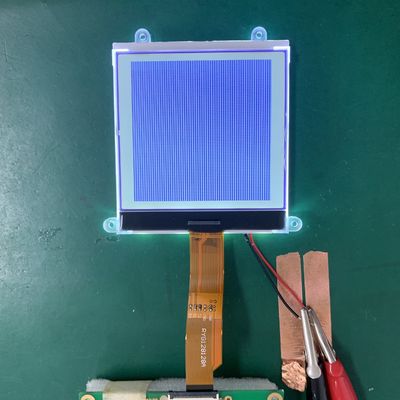

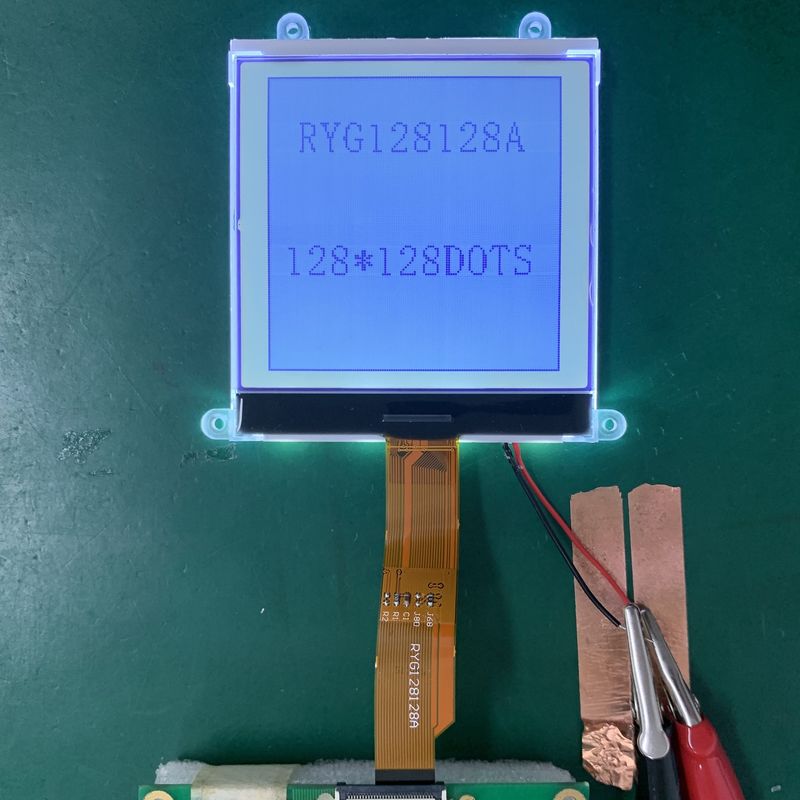

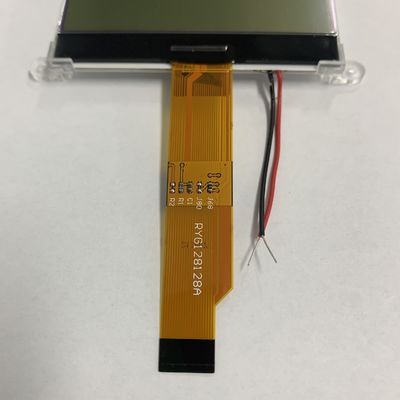

RYG128128A Graphic LCD Module Monochrome Stn Gray 128x128 FPC

RYG128128A Graphic LCD Module Monochrome Stn Gray 128x128 FPC
RYG128128A Graphic LCD Module Monochrome Stn Gray 128x128 FPC

Large Image :  RYG128128A Graphic LCD Module Monochrome Stn Gray 128x128 FPC

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG128128A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: USD 2.99-3.89
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10K/Month
Detailed Product Description
Product Name: Stn Gray 128*128 Graphic LCD Module Model No.: RYG128128A
Display Format: 128x128dots LCD Type: STN Gray, Transflective, Positive
Viewing Angle: 6 O' Clock Controller IC: St7541(Cog)
Connector: FPC Operating Temp.: -20º C~70º C
Storage Temp.: -30º C~80º C
High Light:

Monochrome Stn Graphic LCD Module

,

RYG128128A Graphic LCD Module

,

FPC 128x128 LCD Module

Customized Stn Gray 128*128 Graphic LCD Module RYG128128A



Display Specifications

Item Description
Model No. RYG128128A
Display Type STN Gray, transflective, positive
Outline (mm) 76.5*76.2mm
Viewing Angle 6 O' clock
Driver method 1/128duty 1/12bias
Operating Voltage 3.0V
Connector FPC
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC




Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Graphic LCDs

Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.


Features

Wide variety of off the shelf sizes and resolutions

Most products kept in stock and can ship same day

Ability to display fully changeable graphics

Sunlight readable

Low power consumption

Fully customizable



Custom LCD/LCM are available
