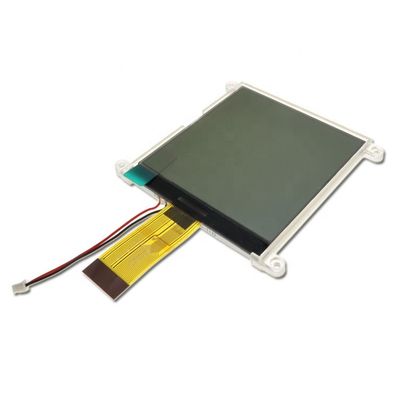

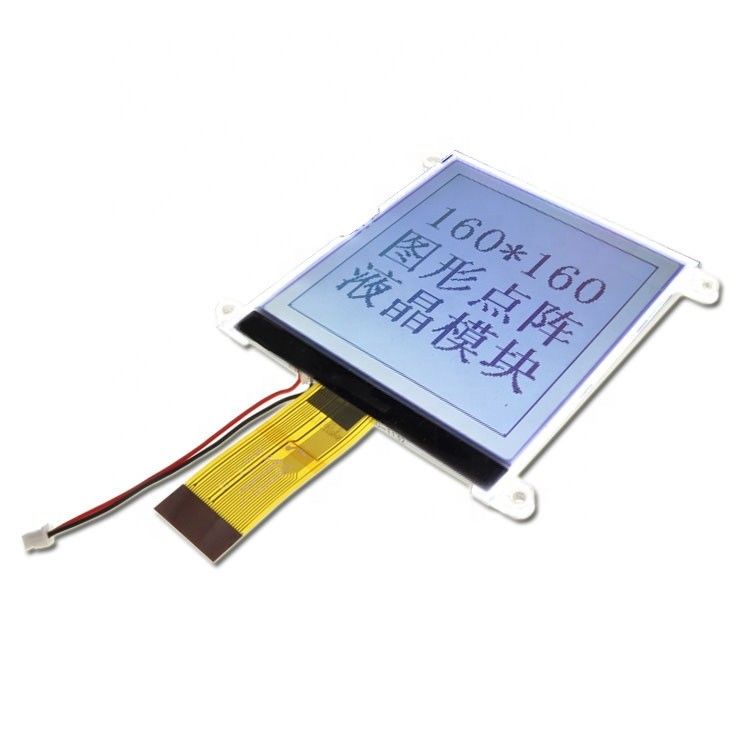

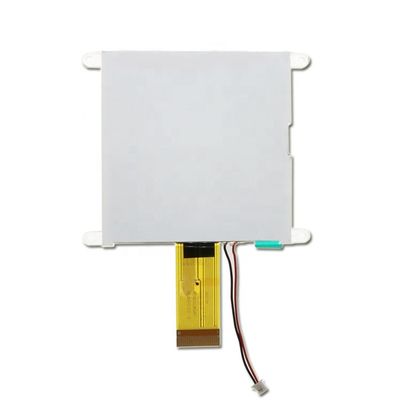

160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V

160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V
160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V

Large Image :  160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG16016001
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 10-15 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Model No.: RYG16016001 LCD Type: FSTN, Positive, Transflective
Viewing Angle: 6 O' Clock Connector: COG+FPC
Power Supply: 3.3V LED Backlight: White
Support Font: English Storage Temp.: -30º C~80º C
Operating Temp.: -20º C~70º C
High Light:

COG FPC Graphic LCD Module

,

160X160 Graphic LCD Module

,

FSTN Mono LCD Module

Custom Mono LCD Display 160X160 Blue Background White Graphic LCD



PRODUCT DESCRIPTION

Item Description
Product Name 160x160dots Graphic LCD Module
Model No. RYG16016001
Dot Format 160x160
Outline (mm) 71.3x65.4
Viewing Area(mm) 60.4x60.4
Viewing Angle 6 O' clock
LCD Type FSTN-Positive
Backlight Type White, 3.3V, 60mA
Driver IC UC1698U
Power supply 3.3V
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC

160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 0
160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 1


OUR SERVICE ADVANTAGES







1)CUSTOMER FOCUSED
We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.


2)EFFECTIVE TEAMWORK
We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.


3)ADVANCED FACILITIES
The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.


4) INTEGRATED SOLUTIONS
We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.


160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 2

CUSTOM PROCESS

(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)

1.Firstly,discuss and confirm all of the details.

2.Payment for tooling process.

3.Formal drawing will be sent within 5 days and confirmed by your side.

4.15-20 days for tooling process.

5.Samples(5-20 pcs)will be sent to you to test and confirmed.

6.Place order for mass production after samples are confirmed.



160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 3
160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 4

WARRANTY


Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

160X160 COG FPC Graphic LCD Module FSTN Positive 3.3V 5

FAQ



1.Q: Are you manufactory or trade company?
We are factory located in Dongguan.
2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
