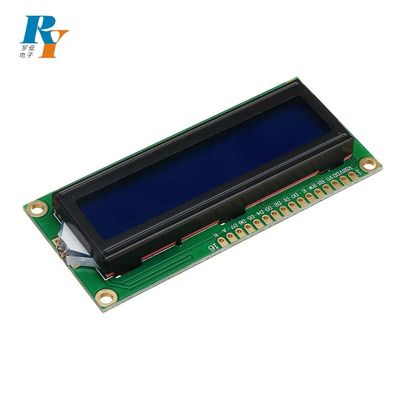

5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8

5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8
5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8 5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8

Large Image :  5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP1602A-8
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Packaging Details: 130pcs/CTN 7.0Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: Yellow Green STN 1602 Character LCD With Y-G Backlight Model No.: RYP1602A-8
LCD Type: YG Display LED Backlight: Yellow Green
Driver IC: AIP31066
High Light:

16X2 LCD Module Character Display

,

5V LCD Module Character Display

,

RYP1602A-8

1602 Character LCD Display Module Blue Backlight with I2C



 Item  Description
 Product Name 16x2 COB LCD Module
 Model No.  RYP1602A-8
 Dot Format  16 x 2
 Outline Dimension(mm)  80.0 x 36.0MAX
 Assem. Size(mm)  75.0 x 31.0
 Viewing Area(mm)  64.6 x 16.0
 Character Size( mm)  2.95 x 5.55
 Viewing Angle  6 O' clock
 LCD Type  STN-YG, Positive, Transflective
 Backlight  Yellow Green
 Driver IC  AIP31066
 Power supply  3.3V or 5V
 Interface  Parallel
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C



Typical Applications



Car Radios, Industrial Instruments,meter for measuring electricity ,Clusters, Air conditioner, Price Tag, Printer, Fax, etc



Features



Wide Operation & Storage temperature range

(Top:-30~+85℃; Tst:-40~+90℃)

Small color change vs. Temperature

Suitable for all kinds of backlight (white/red/blue etc.)

Transmissive negative Mode

Duty Ratio: 1: 1 to 1: 33 (MP)

Super black background

Super high contrast ratio(up to 1000:1)



5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8 0

5V Parallel Interface 16X2 LCD Module Character Display RYP1602A-8 1
