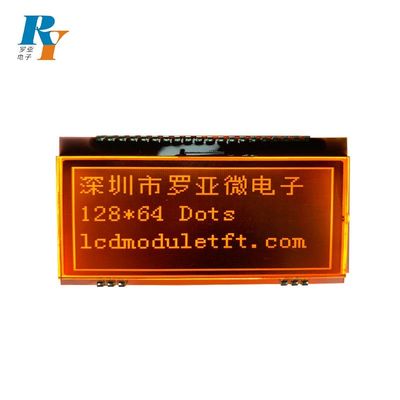

FSTN ST7565P Transmissive LCD Module Display Orange Backlight 128x64 Dots
FSTN ST7565P Transmissive LCD Module Display Orange Backlight 128x64 Dots
Contact Now

FSTN ST7565P Transmissive LCD Module Display Orange Backlight 128x64 Dots

Minimum Order Quantity : 1K Price : USD 2.99-3.89
Packaging Details : 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray Delivery Time : 25~28 Working Days
Payment Terms : L/C, T/T, , L/C, Western Union, MoneyGram Supply Ability : 10k/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: SGS ROHS Model Number: RYG1286407

Detail Information
Product Name: Graphic LCD 128X64dots STN Gray Blue Film LCD Display Module Model No.: RYG1286407
Display Format: 128x64dots LCD Type: FSTN-Negative
LED Backlight: Orange Viewing Angle: 6 O' Clock
Controller IC: ST7565P Connector: PIN
Connection: FPC-Soldering Sunlight Readable: Yes
Backlight Current (Typ): 60mA Display Model: FSTN-Gray Positive Transflective
Operating Temp.: -20º C~70º C Storage Temp.: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display

Product Description



Orange backlight 128x64dots FSTN ST7565P Transmissive LCD Module Display


General Specifications

1. Display Format 128x64 dots
2. Ultra high contrast, Orange LED backlight, 3.3V, 60mA
3. 10.2V LCD Driving Voltage
4. 3.3V power supply
5. Transmissive FSTN-Negative display
6. Customized size

Display Specifications

 Item  Description
 Product Name  128x64dots Graphic LCD Module
 Model No.  RYG1286407-GFVWON
 LCD Model  FSTN-Negative
 Dot Format(dot)  128x64dots
 Outline Dimension(mm)  75.8x47.96
 VA Size(mm)  64x35.5
 AA Size( mm)   60.79x32.95
 Viewing Angle  6 O' clock
 Backlight  Orange LED backlight
 Driver IC  ST7565P
 Power supply  3.3V
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C




Typical Applications
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Model
Wide Operation & Storage temperature range
Duty Ratio: up to 1:240
support gray scale display

FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .

    You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately



Q3. How to order lcd?



A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4)Forwarder's contact details if you have any in China.





Custom LCD/LCM are available
FSTN ST7565P Transmissive LCD Module Display Orange Backlight 128x64 Dots 0
