RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module

RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module
RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module

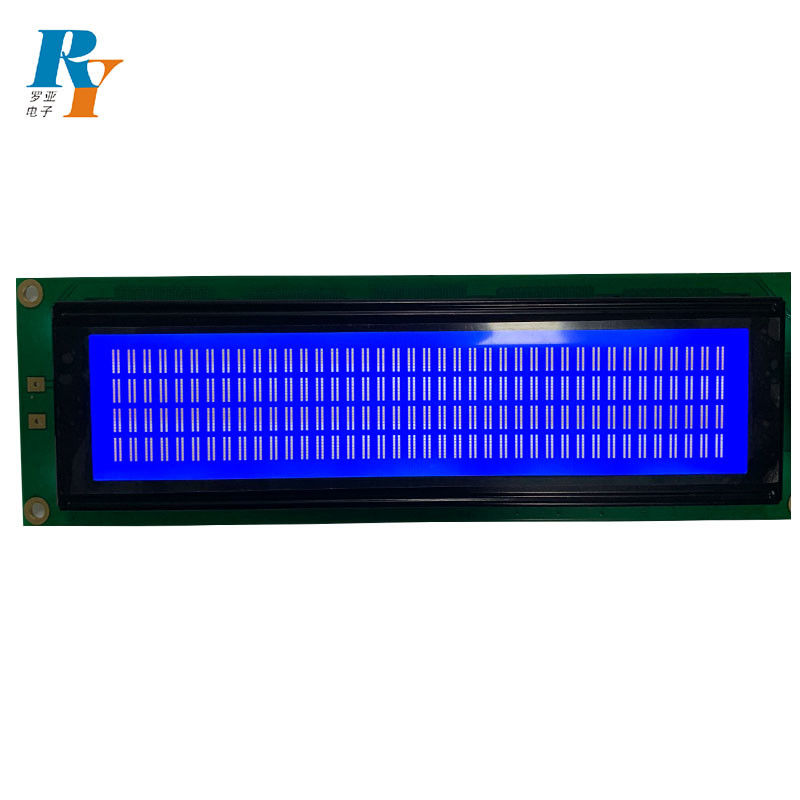

Large Image :  RYP4004A 0.91" Graphic Lcd Module COB FSTN / STN 40x4 Dots LCD Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP4004A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: USD 4.6-5.8
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Product Name: RYP4004A 0.91'' Graphic COB FSTN/STN 40x4dots LCD Display Module Model No.: RYP4004A
Display Format: 40x4dots Viewing Angle: 6 O' Clock
LED Backlight: White Y/G Controller: ST7065
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display



RYP4004A 0.91'' Graphic COB FSTN/STN 40x4dots LCD Display Module





General Specifications





1. Display Format 40x4 dots
2. Parallel interface
3. 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Display Specifications



Item Description
Product Name 40x4 dots Graphic LCD Module
Model No. RYP4004A
Dot Format 40x4
Outline Dimension(mm) 190x54
Assem. Size(mm) 130.0 x 53.0
Pixel Size( mm) 0.468 x 0.468
Viewing Angle 6 O' clock
LCD Mode FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Driver IC ST7065
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C





Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. How to order lcd?



A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4)Forwarder's contact details if you have any in China.



Q3. How long can I expect to get the sample?



A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.



Q4. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately



Custom LCD/LCM are available
