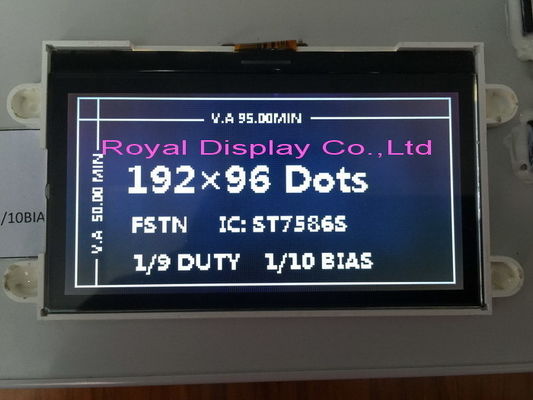

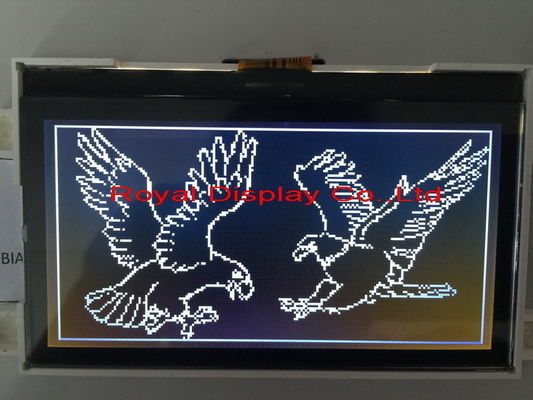

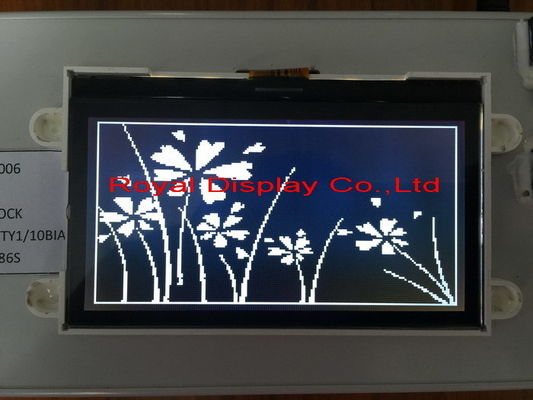

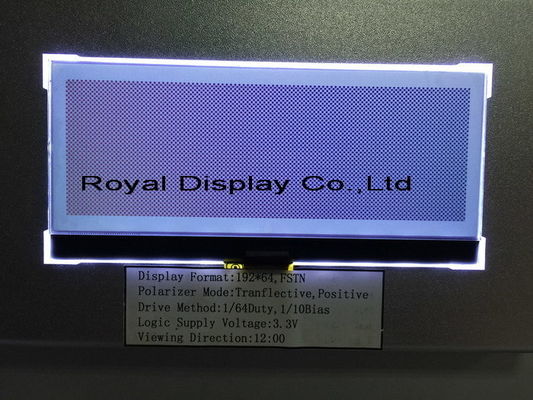

Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module

Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module
Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module

Large Image :  Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY19264
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.89
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 192X64 Outline (mm): 135X65
IC Package: Cog Display Type: FSTN
Power Supply: 3.3V Interface: Parallel
View Angle Range: No Connector: FFC-Connector
Viewing Direction: 12:00
High Light:

Stn Graphic LCD Graphic Module

,

ROHS FSTN Graphic LCD Module

,

FPC FSTN Lcd Display Module

Character Monochrome LCD STN Negative LCD Display Module

PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 192x64dots Graphic LCD Module
Model No. RY19264
Dot Format 192x64
Outline (mm) 135*65
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7586S
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC







Typical Applications


Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module 0

Graphic 19264 Monochrome LCD Stn 3.3V Negative LCD Display Module 1


FAQ:

Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacement of any product found to be defective under normal use.

Q: What certification could provide?
A: Products by RoHS, CE, SGS certification.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product-related information and test reports.

Q: The product specification is in Chinese or English?
A: The version of the product specification in English.

Q: What is the minimum order quantity?
A: All our products have a MOQ requirement, please contact our salesman for detailed information.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q: What is the product's application?
A:The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto, and AOI, etc.

Q: Wonder if you accept small orders?
A: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
