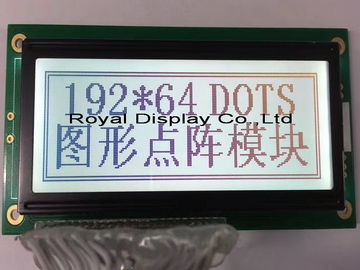

Dot Matrix Lcd Display Module For Industrial Application 192x64 Dots

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Dot Matrix Lcd Display Module For Industrial Application 192x64 Dots

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP19264A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 10k/Month
Detailed Product Description
Product Name: Industrial Application 19264 Graphic COB LCD Module RYP19264A Model No.: RYP19264A
Dot Format: 192X64 Viewing Angle: 6 O' Clock
LED Backlight: White Y/G Controller: S6B0108
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Dot Matrix Lcd Display Module

,

Dot Matrix Lcd Module



Industrial Application 19264 Graphic COB LCD Module RYP19264A



1. 192x64 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 192X64 dots Graphic LCD Module
Model No. RYP19264A
Dot Format 192x 64
Outline Dimension(mm) 130X65
Assem. Size(mm) 130.0 x 53.0
Viewing Area(mm) 104.0 x 39.0
Pixel Size( mm) 0.468 x 0.468
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Driver IC S6B0108
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



Dot Matrix Lcd Display Module For Industrial Application 192x64 Dots 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



Dot Matrix Lcd Display Module For Industrial Application 192x64 Dots 1
