RYP240128B 240x128 Lcd Graphic Display Module With RA8822B-T , Long Life

Minimum Order Quantity : 1K Packaging Details : 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time : 25~28 Working Days Supply Ability : 10k/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: SGS ROHS Model Number: RYP240128B

Detail Information

Product Name: RYP240128B 240x128 Dots With RA8822B-T Build In Chinese Character Model No.: RYP240128B
Dot Format: 240X128 Viewing Angle: 6 O' Clock
LED Backlight: White Y/G Controller: RA8822B-T
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Lcd Dot Matrix Display

,

Dot Matrix Lcd Display Module

Product Description





RYP240128B Dot Matrix Lcd Module For Industrial Application 240x128 Dots With RA8822B-T Build In Chinese Character



1. 240x128 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 240X128 dots Graphic LCD Module
Model No. RYP240128B
Dot Format 240x 128
Outline Dimension(mm) 91.8x74
Assem. Size(mm) 84.0 x 71.0
Viewing Area(mm) 83.2 x 54.0
Pixel Size( mm) 0.3 x 0.33
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Controller RA8822B-T
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

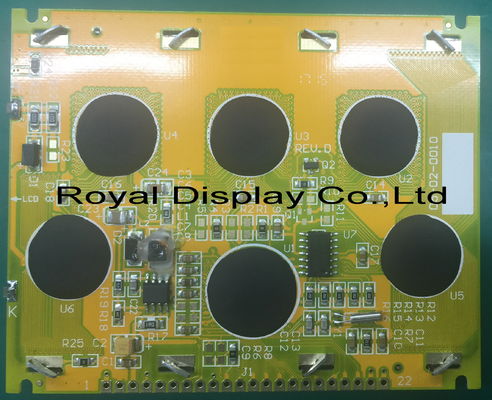

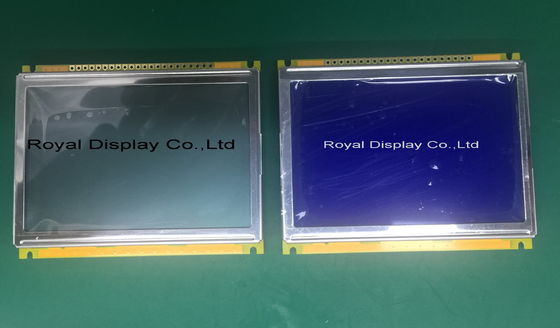

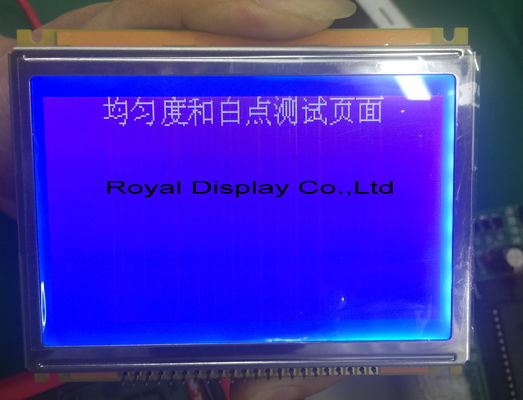

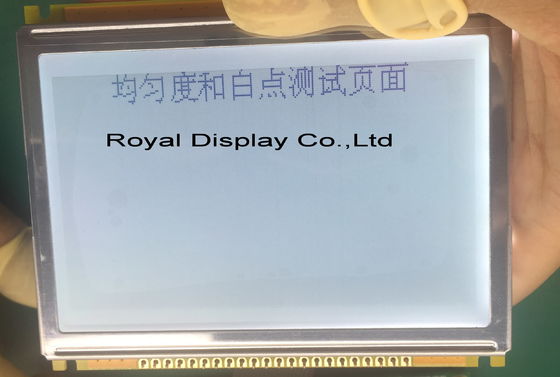

RYP240128B 240x128 Lcd Graphic Display Module With RA8822B-T , Long Life

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

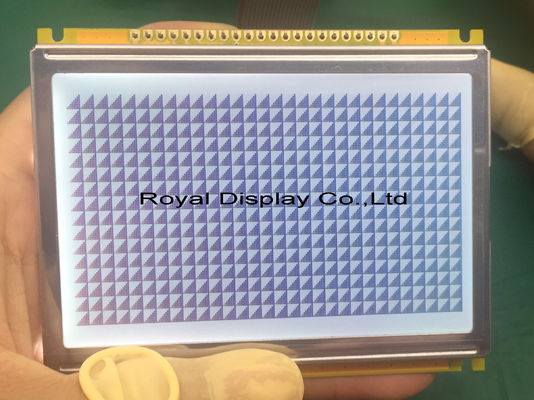

RYP240128B 240x128 Lcd Graphic Display Module With RA8822B-T , Long Life
