UC1698 Driver Dot Matrix Lcd For Fireplace RYG180100A Wide Operation

Minimum Order Quantity : 1K Packaging Details : 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time : 25~28 Working Days Supply Ability : 300k/Month
Place of Origin: CHINA Brand Name: ROYAL DISPLAY
Certification: SGS ROHS Model Number: RYG180100A

Detail Information

Product Name: RYG180100A Graphic COG LCD Module Model No.: RYG180100A
Dot Format: 180X100 Viewing Angle: 6 O' Clock
Operating Temp: -20º C~70º C LCD Type: FSTN Or STN Postive
Driver: UC1698
High Light:

Lcd Dot Matrix Display

,

Dot Matrix Lcd Display Module

Product Description



Dot Matrix COG LCD Module 180X100 Dots With UC1698 RYG180100A STN Positive Black On Y/G Used For Fireplace

1. 320x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 180*100 dots Graphic LCD Module
Model No. RYG180100A
Dot Format 180*100
Outline Dimension(mm) 70*46
Viewing Area(mm) 67*37
Pixel Size( mm) 0.30 x 0.30
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray Y/G
Backlight White or Amber LED backlight
Driver IC UC1698
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

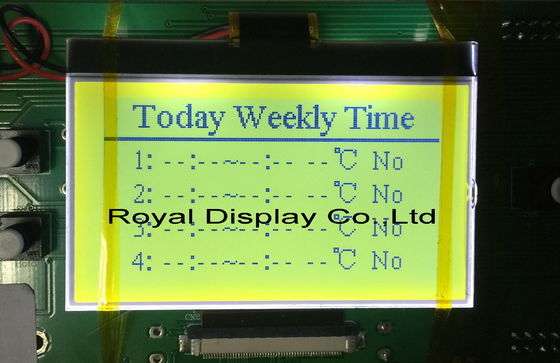

UC1698 Driver Dot Matrix Lcd For Fireplace RYG180100A Wide Operation

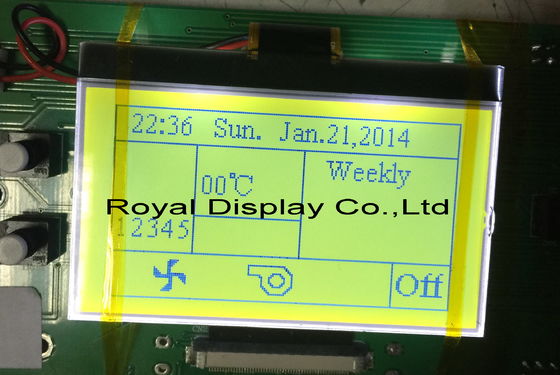

UC1698 Driver Dot Matrix Lcd For Fireplace RYG180100A Wide Operation
