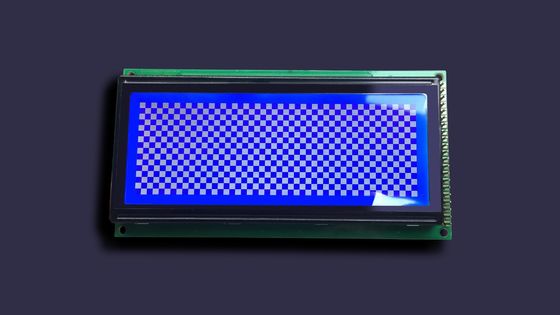

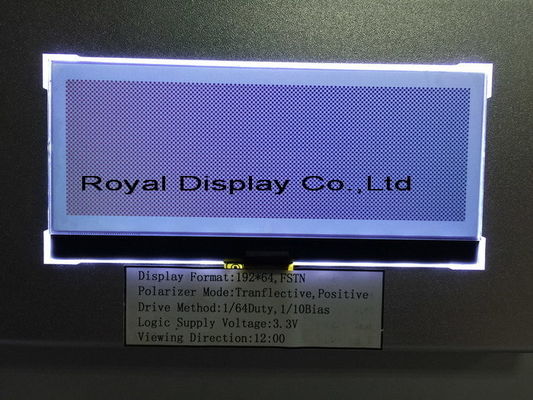

Custom 192X64 Resolution Positive Graphic Transflective Custom LCD Display in Stock

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Custom 192X64 Resolution Positive Graphic Transflective Custom LCD Display in Stock

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY19264
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.89
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 192X64 Outline (mm): 135X65
IC Package: Cog Display Type: FSTN
Power Supply: 3.3V Interface: Parallel
View Angle Range: No Connector: FFC-Connector
Viewing Direction: 6:00
High Light:

Stn Graphic LCD Graphic Module

,

ROHS FSTN Graphic LCD Module

,

FPC FSTN Lcd Display Module

Positive Transflective Custom LCD Display In Stock 192x64 Resolution


Product Description
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 192x64dots Graphic LCD Module
Model No. RY19264
Dot Format 192x64
Outline (mm) 135*65
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7586S
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC



Features

1. Low power consumption



2. High brightness and luminous intensity output



3. Easy assembly



4. High intensity and reliability



5. Low voltage and current operation



6. energy saving & long life



7. Solid-state LED chip base



8. Easy mounting on printed circuit board and sockets



9. Rhos&Reach approved



10. Better show effect and wide view angle





Favorable Comments



Custom 192X64 Resolution Positive Graphic Transflective Custom LCD Display in Stock 0





FEATURES
Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range

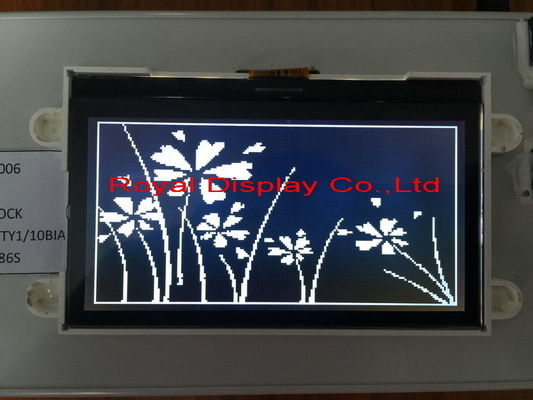

Custom 192X64 Resolution Positive Graphic Transflective Custom LCD Display in Stock 1





ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
