3.3V Power Supply COG LCD Module STN Positve 128*128 Dots NT7541 Driver

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  3.3V Power Supply COG LCD Module STN Positve 128*128 Dots NT7541 Driver

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG128128A
Payment & Shipping Terms:
Minimum Order Quantity: 1.8K
Packaging Details: 180pcs/CTN 9.5Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: COG Display 128 X 128(RYG128128A) Model No.: RYG128128A
Dot Format: 128x128 Outline (mm): 69.5*76.2*8.0
Viewing Area(mm): 60.0x58.4 Dot Size( Mm): 0.40x0.40
Viewing Angle: 6 O' Clock LCD Type: STN-Gray
LED Backlight: White Driver IC: NT7541
Operating Temp: -20º C~70º C Storage Temp: -30º C~80º C
High Light:

Reflective Lcd Display

,

Tft Lcd Screen

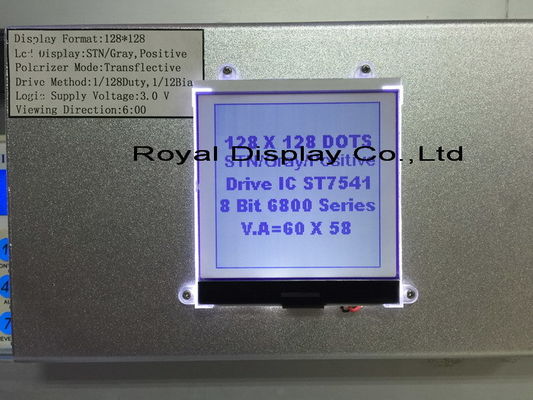

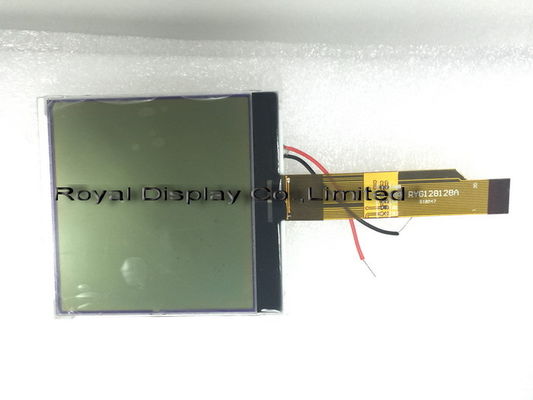

RYG128128A COG LCD Module STN Positve 128*128 dots , 3.3V Power supply



  1. COG LCD Module
  2. Dots Format , 128x128
  3. Controller , NT7541 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. Widely Use On Hand-held Device

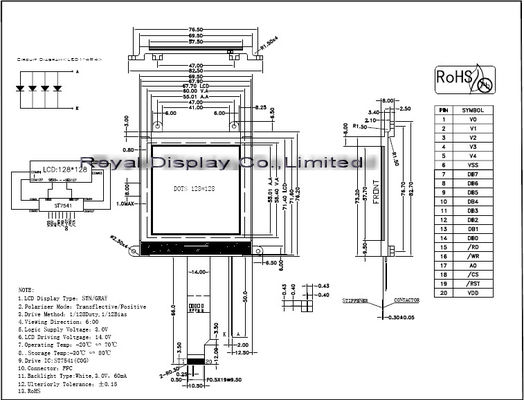

  6. PIN SYMBOL
    1~5 VO~V4
    6 VSS
    7~14 DB7~DB0
    15 /RD
    16 /WR
    17 A0
    18 /CS
    19 /RST
    20

    VDD



    3.3V Power Supply COG LCD Module STN Positve 128*128 Dots NT7541 Driver 0
