0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome LCD Module

large.img.alt
small.img.alt small.img.alt small.img.alt

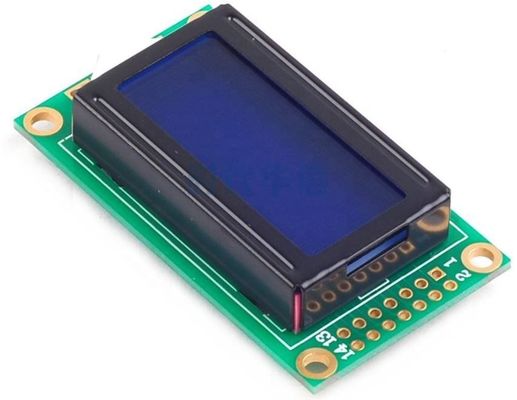

Large Image :  0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome LCD Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYP0802B-Y
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 1.18-1.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 8X2 Outline (mm): 58*32
LCD Type: FSTN-Positive, Stn-Gray Backlight Color: White Or Amber LED Backlight
Power Supply: 5V Viewing Direction: 6:00
IC Package: COB Operating Temp.: -20º C~70ºC
Storage Temp.: -30º C~80ºC
High Light:

COB Positive LCD Module FSTN

,

STN YG Character Lcd Display

,

Stn Monochrome Character LCD Display

Monochrome Yellow Green 8x2 Character COB LCD Module

1. 8X2 Characters
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Product Description

Item Description
Product Name 8x2 Character LCD Module
Model No. RYP0802A
Dot Format 8X2
Outline (mm) 58*32
Viewing Area(mm) 28*16
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC AIP31066
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC





Organization

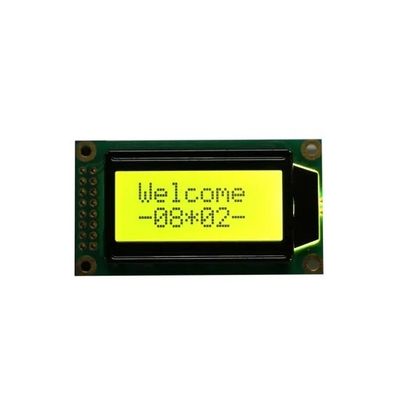

0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome  LCD Module 0

Character LCM

1>> Customer requirements can be customized.



2>> Available for different modes such as yellow-green, blue and white color.



3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..



4>> Customized for the total module including new size, backlight, color,



PCB circuit board. connection mode ect.

Application: DAB Radios,Stereos, Access Control, The Printer







0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome  LCD Module 1





Features Of Different Industrial Segment



0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome  LCD Module 2





Our Advantages



1, It can help customers solve hardware and software solutions, so that customers stand at the commanding height of the market for the first time.


2,All technical indexes are equal to or higher than those of other companies


3,Based on strong R & D force and advanced equipment, the product has high stability and reliability


4,Personalized service, according to customer requirements.


5,Service oriented, quality first.
