6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins

Certification
China Royal Display Co.,Limited certification
China Royal Display Co.,Limited certification
Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

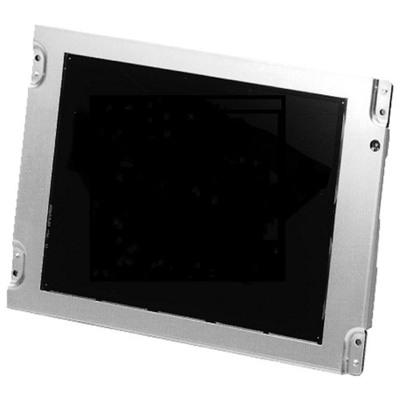

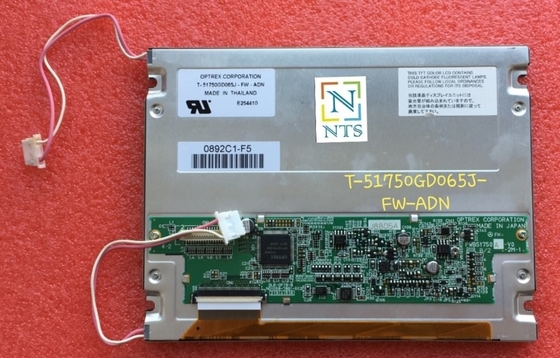

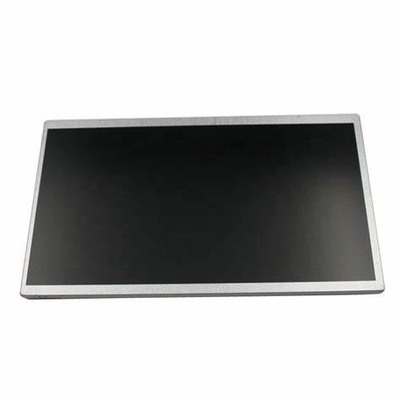

6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins

6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins
6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins 6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins 6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins 6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins

Large Image :  6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY/ OPTREX
Certification: SGS, ROHS
Model Number: T-51750GD065J-FW-ADN
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300K pcs/month
Detailed Product Description
Brightness: 400 Contrast Ratio: 300:1
Brightness Uniformity: 0.7 Operating Temp: -25 To +75 Celsius Degree
Storage Temp: -25 To +85 Celsius Degree Active Area: 132.5*99.4 Mm
Outline Dimension: 158.0*120.36*10.75 Mm Weight: 190g
High Light:

6.5" TFT LCD Module

,

6-bit 31 Pins TFT LCD Module

,

640*480 TFT LCD Module



6.5" TFT LCD Module OPTREX 640*480 wide temperature Parallel RGB 6-bit 31 pins



Product Description



The T-51750GD065J-FW-ADN is a 6.5-inch LCD panel manufactured by OPTREX Display Solutions. Here are the corrected specifications:

  • Size: 6.5 inches
  • Resolution: 640 x 480 pixels (4:3 aspect ratio)
  • Display technology: TFT-LCD (Thin-Film Transistor Liquid Crystal Display)
  • Brightness: 400 cd/m² (typical)
  • Contrast ratio: 300:1 (typical)
  • Response time: 15 ms (gray-to-gray)
  • Backlight: CCFL 2 pcs 50k Hours Without Driver
  • Interface: Parallel RGB (1 ch 6-bit) 31 pins
Item STANDARD Value
LCD size 6.5 inch
LCD Display Type a-Si TFT
LCD Display Mode TN, Normally White , Transmissive
Viewing Direction 6H
Resolution 640*RGB*480
Module size 158.0*120.36*10.75 mm
Active area 132.5*99.4 mm
Color Pixel Arrangement RGB Stripe
Surface Anti-Glare
Top & Tst -25 to +75 ºC &-25 to +85ºC



6.5" TFT LCD Module OPTREX 640*480 Wide Temperature Parallel RGB 6-bit 31 Pins 0

Applications



The T-51750GD065J-FW-ADN LCD panel is commonly used in various applications, including:

  1. Industrial Equipment: The compact size and durability of the T-51750GD065J-FW-ADN make it suitable for integration into industrial equipment, such as control panels, measurement devices, and automation systems.

  2. Handheld Devices: The small form factor and high brightness of the T-51750GD065J-FW-ADN LCD panel make it suitable for handheld devices like portable medical devices, handheld test equipment, and handheld gaming consoles.

  3. Automotive Displays: The T-51750GD065J-FW-ADN can be used in automotive applications such as in-dash displays, rear-seat entertainment systems, and navigation systems in vehicles.

  4. Portable Multimedia Devices: The LCD panel can be integrated into portable multimedia devices like portable DVD players, portable media players, and portable video monitors, providing a compact and vibrant display.

  5. Embedded Systems: The T-51750GD065J-FW-ADN LCD panel can be used in embedded systems, including digital signage, kiosks, vending machines, and POS terminals that require a small yet high-quality display.



Our Advantages



1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.





Packaging & Shipping



Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks



FAQs



1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?

-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
