43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace

Certification
China Royal Display Co.,Limited certification
China Royal Display Co.,Limited certification
Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace

43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace
43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace 43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace 43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace

Large Image :  43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS, ROHS
Model Number: PT430CT02-7
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 79.9 USD EXW
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300K pcs/month
Detailed Product Description
Resolution: 1920*RGB*1080 Screen Size: 43 Inch Diagonal
Active Area: 940.896*529.254 Mm Driver Element: A-si TFT Active Matrix
Display Mode: Normally Black Weight: 1547g
Operating Temp: 0 To +50 Celsius Degree Storage Temp: -20 To +60 Celsius Degree
High Light:

mini-LVDS interface TFT LCD Module

,

43'' TFT LCD Module

,

CC430LV2D TFT LCD Module

43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace





Product Description



TFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 5'' TFT LCD Display.

Item of general information Contents
LCD Type 43 inch diagonal
Recommended Viewing Direction free
Display Resolution 1920*RGB*1080
Active Area 940.896*529.254 mm
Display Mode Normally black
Pixel arrangement RGB Vertical stripe
Certificate CE, RoHS, SGS
Contrast Ratio 4000:1
Surface treatment 3H
Operating Temp 0º C~+50ºC
Storage Temp -20º C~+60ºC

43'' LCD Module TFT 1920*RGB*1080 mini-LVDS interface BIG SCREEN PANDA CC430LV2D 100% replace 4





Product Features



1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.

2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.

3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)

4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.

5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.

6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.




Product Applications



A 43-inch TFT LCD (Thin-Film Transistor Liquid Crystal Display) can be used in various applications, including:

  1. Television: A 43-inch TFT LCD panel is commonly used in mid-sized televisions. It provides a good balance between screen size and affordability, making it suitable for home entertainment.

  2. Digital Signage: TFT LCD panels are widely used in digital signage displays for advertising, information display, and wayfinding purposes. The 43-inch size offers a large enough display area to attract attention in public spaces like shopping malls, airports, and train stations.

  3. Gaming Monitors: Many gaming enthusiasts prefer larger displays for an immersive gaming experience. A 43-inch TFT LCD can be used as a gaming monitor, providing a wide field of view and high-quality visuals.

  4. Conference Room Displays: In business settings, a 43-inch TFT LCD can be used as a conference room display for presentations, video conferences, and collaborative work. It offers a clear and vibrant display for sharing information and engaging with participants.

  5. Control Rooms and Surveillance Systems: TFT LCD panels are commonly used in control rooms and surveillance systems where real-time monitoring of multiple feeds is required. The 43-inch size allows for efficient visual monitoring and analysis of data or video streams.

  6. Interactive Kiosks: With touch-sensitive capabilities, a 43-inch TFT LCD can be used in interactive kiosks for various applications, such as retail, self-service information points, ticketing systems, and wayfinding.

  7. Education and Training: In classrooms or training facilities, a 43-inch TFT LCD can serve as an interactive display for educational content, presentations, and collaborative learning activities.

  8. Hospitality and Tourism: Hotels, resorts, and tourism centers often use large displays to provide information, entertainment, and wayfinding assistance to guests. A 43-inch TFT LCD can be incorporated into such environments to offer a visually appealing and informative experience.

These are just a few examples of how a 43-inch TFT LCD can be applied in different contexts. The versatility and affordability of this screen size make it suitable for a wide range of applications.

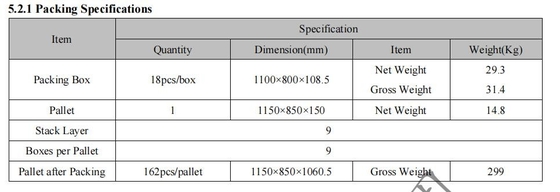

Packaging & Shipping



Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.

Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks



FAQs



1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.

4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.

5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
